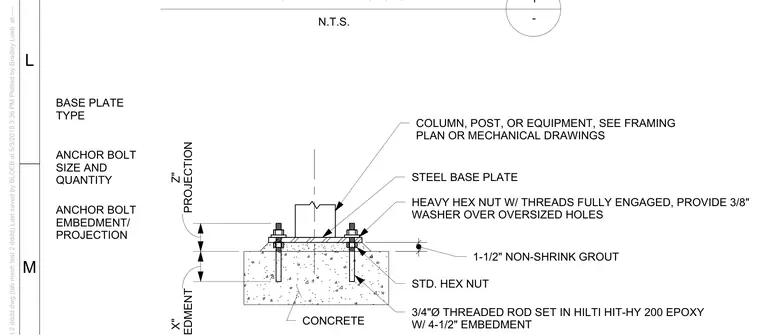

A structural steel base plate is anchored to a concrete foundation with three-quarter-inch-diameter threaded rods set in Hilti HIT-HY 200 epoxy with four-and-a-half-inch embedment. The connection utilizes standard hex nuts below and heavy hex nuts with fully engaged threads above, paired with three-eighths-inch washers placed over oversized holes. A one-and-a-half-inch non-shrink grout pad is provided beneath the base plate.
3/4"Ø THREADED ROD SET IN HILTI HIT-HY 200 EPOXY W/ 4-1/2" EMBEDMENT STD. HEX NUT HEAVY HEX NUT W/ THREADS FULLY ENGAGED, PROVIDE 3/8" WASHER OVER OVERSIZED HOLES 1-1/2" NON-SHRINK GROUT STEEL BASE PLATE COLUMN, POST, OR EQUIPMENT, SEE FRAMING PLAN OR MECHANICAL DRAWINGS CONCRETE Z" PROJECTION X" L M BASE PLATE TYPE ANCHOR BOLT SIZE AND QUANTITY ANCHOR BOLT EMBEDMENT/ PROJECTION N.T.S. - CAST IN PLACE ANCHORS 1
