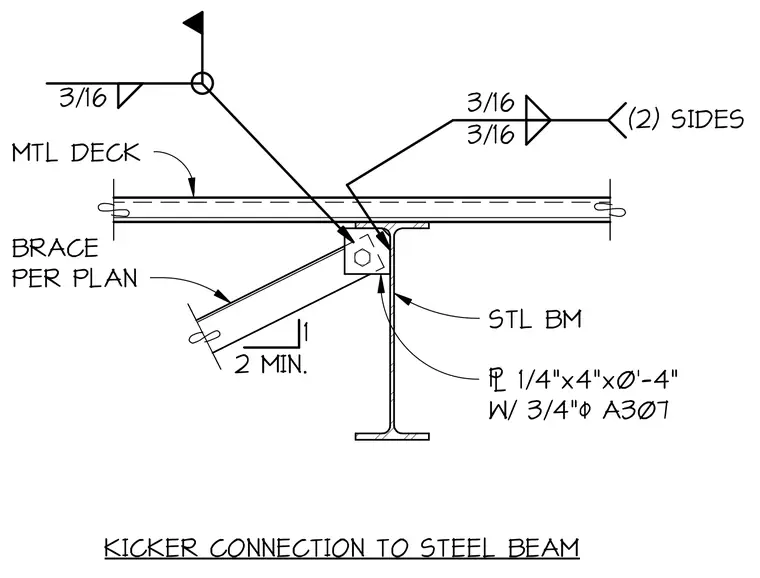

A brace kicker with a minimum two-to-one slope connects to a supporting steel beam web via a one-quarter-inch by four-inch by four-inch plate secured with three-quarter-inch diameter A307 bolts. The connection detail is positioned directly beneath a metal deck and features three-sixteenth-inch fillet welds on two sides.
1 2 MIN. BRACE PER PLAN 3/16 MTL DECK KICKER CONNECTION TO STEEL BEAM 3/16 3/16 (2) SIDES STL BM ' 1/4"x4"x0'-4" W/ 3/4" A307
