Structural · S-DZWPS

Typical Steel Core End Connection Detail

Materials

Steel

Elements

Millwork / Casework Connections / Plates

Connections

Gusset Plate Bolted Connection

About this detail

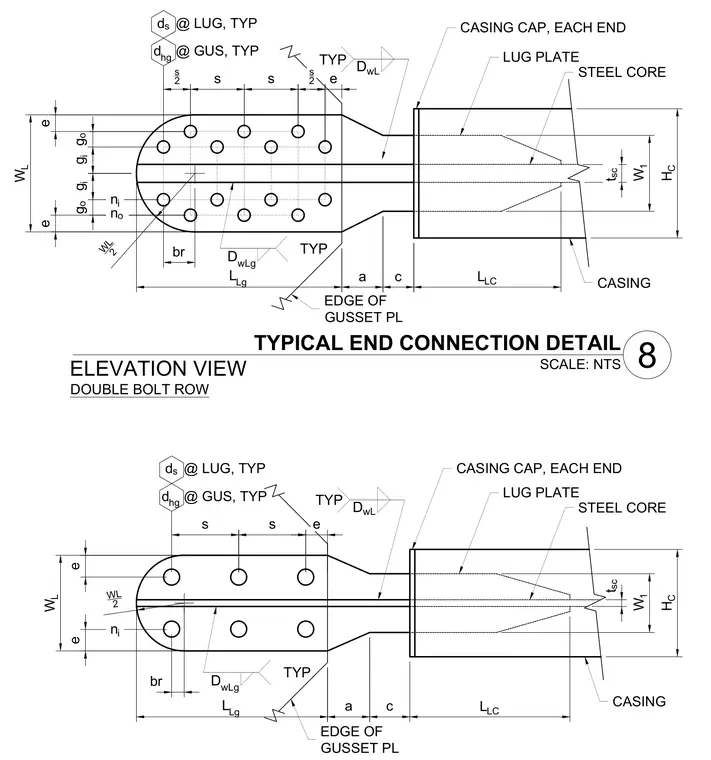

An elevation of a typical end connection for a structural steel core housed within a casing. The assembly features a gusset plate transitioning into a lug plate, fastened with bolts along designated gauges and edge distances. Casing caps are provided at each end of armature enclosing the steel core. Dimensional callouts indicate spacing, plate lengths, and widths for fabrication and alignment.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
