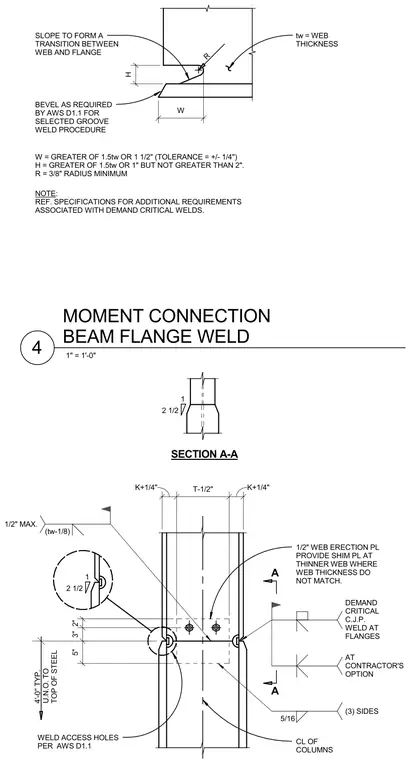

The moment connection details the rigid joining of structural steel framing members with complete joint penetration groove welds at the beam flanges and fillet welds at the web erection plates. Weld access holes are dimensioned with a minimum three-eighths inch radius and configured with height and width parameters proportional to the web thickness. A one-half inch web erection plate provides temporary alignment and securement, with shim plates inserted at mismatched web thicknesses. Demand critical welds are specified per AWS D1.1 structural welding code requirements. Bevels at the beam flange transitions are prepared in accordance with approved groove weld procedures.
BEVEL AS REQUIRED BY AWS D1.1 FOR SELECTED GROOVE WELD PROCEDURE SLOPE TO FORM A TRANSITION BETWEEN WEB AND FLANGE tw = WEB THICKNESS H W R W = GREATER OF 1.5tw OR 1 1/2" (TOLERANCE = +/- 1/4") H = GREATER OF 1.5tw OR 1" BUT NOT GREATER THAN 2". R = 3/8" RADIUS MINIMUM NOTE: REF. SPECIFICATIONS FOR ADDITIONAL REQUIREMENTS ASSOCIATED WITH DEMAND CRITICAL WELDS. 4'-0'' TYP. U.N.O. TO TOP OF STEEL A A 2 1/2 1 SECTION A-A CL OF COLUMNS 1 2 1/2 K+1/4" T-1/2" K+1/4" 5" 3" 2" 1/2" WEB ERECTION PL PROVIDE SHIM PL AT THINNER WEB WHERE WEB THICKNESS DO NOT MATCH. 1/2" MAX. 5/16 (3) SIDES DEMAND CRITICAL C.J.P. WELD AT FLANGES AT CONTRACTOR'S OPTION WELD ACCESS HOLES PER AWS D1.1 (tw-1/8) 1" = 1'-0" MOMENT CONNECTION BEAM FLANGE WELD 4
