Hanging Steel Beam and Column Connection Detail

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Floors / Slabs Decks Arches Connections / Plates

Connections

Base Plate / Anchorage

About this detail

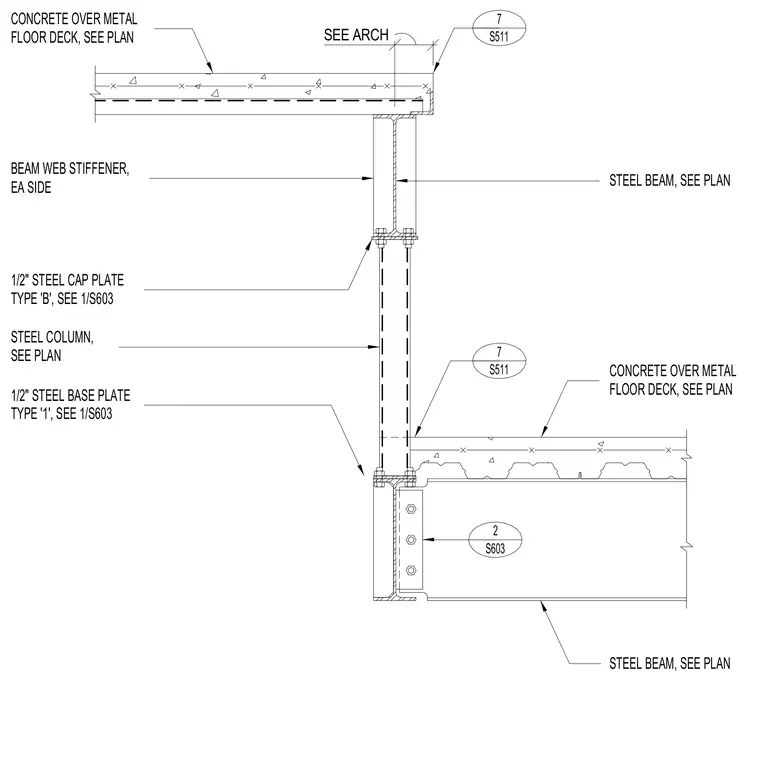

A structural steel hanging beam connection featuring a steel beam supporting an upper concrete slab on metal floor deck. A steel column is connected via a one-half-inch steel cap plate type B at the upper beam and a one-half-inch steel base plate type 1 at the lower level. Beam web stiffeners are provided on each side of the steel beam as required. The lower steel beam is tied into the assembly with a bolted connection detailed on sheet S603.
