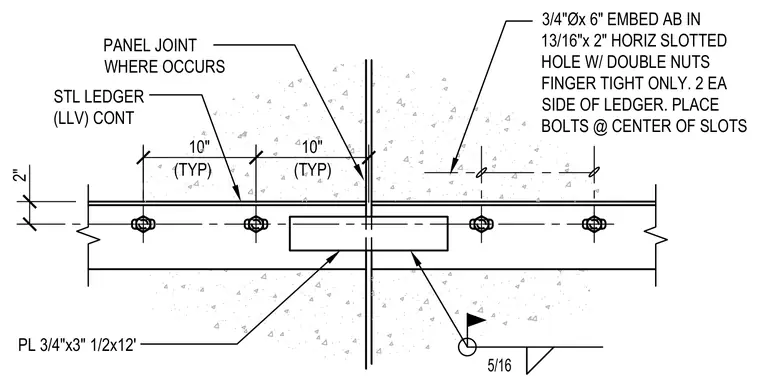

A continuous five-sixteenth-inch steel ledger plate spans across a panel joint with a continuous panel joint occurring at the centerline. The assembly connects to the substrate via three-quarter-inch diameter by six-inch embed anchor bolts installed in thirteen-sixteenth-inch by two-inch horizontal slotted holes with double nuts left finger tight only. Two anchor bolts are placed on each side of the ledger with bolts centered in the slots at ten-inch typical spacing. A three-quarter-inch by three-inch half by twelve-foot plate is detailed below with a five-sixteenth fillet weld symbol.
10" PL 3/4"x3" 1/2x12' 2" (TYP) 3/4"Øx 6" EMBED AB IN 13/16"x 2" HORIZ SLOTTED HOLE W/ DOUBLE NUTS FINGER TIGHT ONLY. 2 EA SIDE OF LEDGER. PLACE BOLTS @ CENTER OF SLOTS 10" (TYP) 5/16 STL LEDGER (LLV) CONT PANEL JOINT WHERE OCCURS
