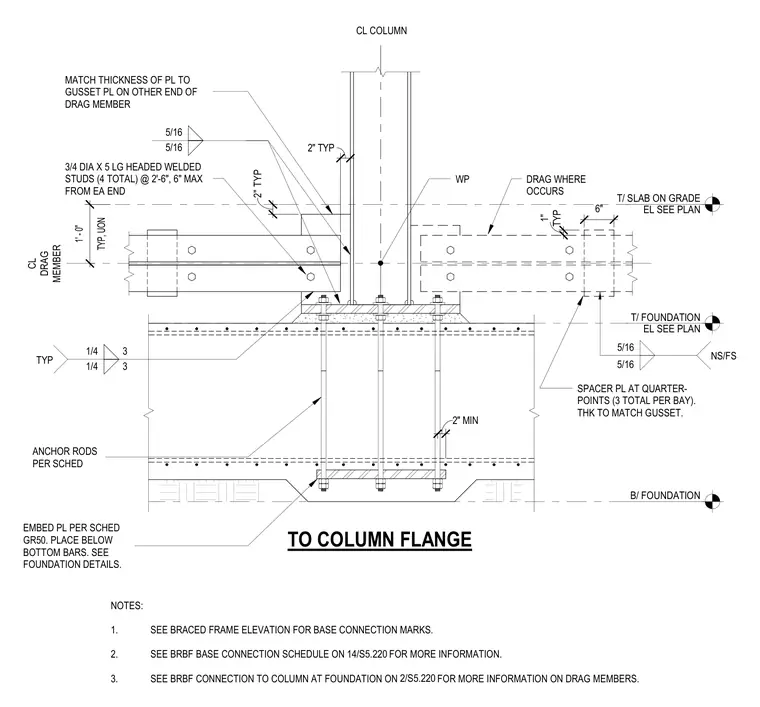

A braced frame connection ties a drag member to a steel column flange at the foundation level. Grade 50 embed plates are positioned below the bottom reinforcing bars with anchor rods installed per the structural schedule. The drag member connects to the column flange using five-sixteenth-inch fillet welds on both the near side and far side typical. Three spacer plates matching the thickness of the gusset plate are placed at quarter-points along the bay. Three-quarter-inch diameter by five-inch-long headed welded studs are spaced at two feet six inches on center with a maximum of six inches from each end unless otherwise noted.
EL SEE PLAN T/ SLAB ON GRADE EL SEE PLAN T/ FOUNDATION B/ FOUNDATION NOTES: 1. SEE BRACED FRAME ELEVATION FOR BASE CONNECTION MARKS. 2. SEE BRBF BASE CONNECTION SCHEDULE ON FOR MORE INFORMATION. 3. SEE BRBF CONNECTION TO COLUMN AT FOUNDATION ON FOR MORE INFORMATION ON DRAG MEMBERS. CL COLUMN 1/4 3 1/4 3 TYP 5/16 5/16 TO COLUMN FLANGE WP CL DRAG MEMBER 2" TYP MATCH THICKNESS OF PL TO GUSSET PL ON OTHER END OF DRAG MEMBER 2" TYP ANCHOR RODS PER SCHED EMBED PL PER SCHED GR50. PLACE BELOW BOTTOM BARS. SEE FOUNDATION DETAILS. 2" MIN DRAG WHERE OCCURS 14/S5.220 2/S5.220 SPACER PL AT QUARTER- POINTS (3 TOTAL PER BAY). THK TO MATCH GUSSET. 6" 5/16 5/16 NS/FS TYP 1" 3/4 DIA X 5 LG HEADED WELDED STUDS (4 TOTAL) @ 2'-6", 6" MAX FROM EA END TYP, UON 1' - 0"
