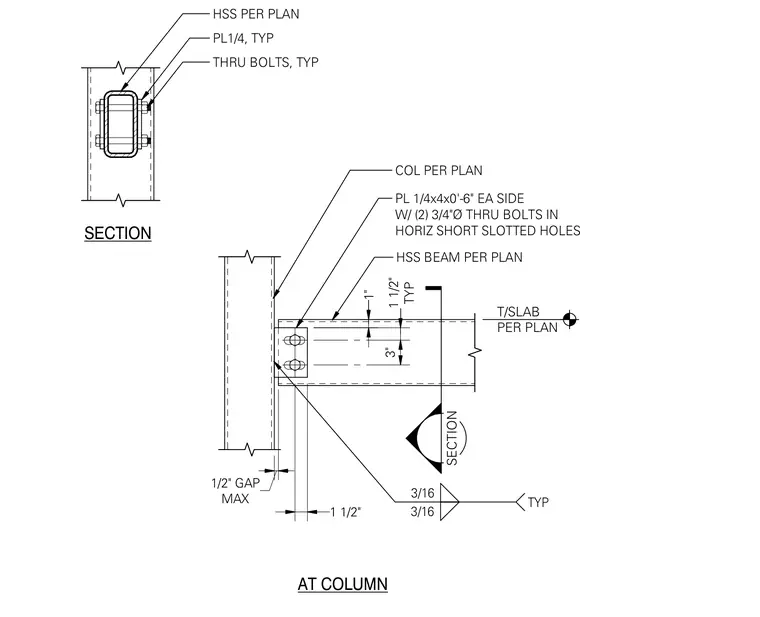

An HSS beam frames into an HSS column utilizing a quarter-inch plate welded with typical three-sixteenths fillet welds on each side. Two three-quarter-inch diameter through-bolts in horizontal short slotted holes secure the connection, maintaining a maximum half-inch gap at the column face. A cross-section detail shows the through-bolts passing through the hollow structural section with typical quarter-inch plates.
AT COLUMN MAX 1/2" GAP SECTION 1" PL 1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES COL PER PLAN 3/16 3/16 TYP HSS BEAM PER PLAN SECTION 3" TYP 1 1/2" PL1/4, TYP THRU BOLTS, TYP HSS PER PLAN 1 1/2" T/SLAB PER PLAN
