Structural · S-DZ5D3

Provide Pl 1/4"X5"Xcont

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Curtain Walls Decks Arches Bracing

Connections

Bracing Connection

About this detail

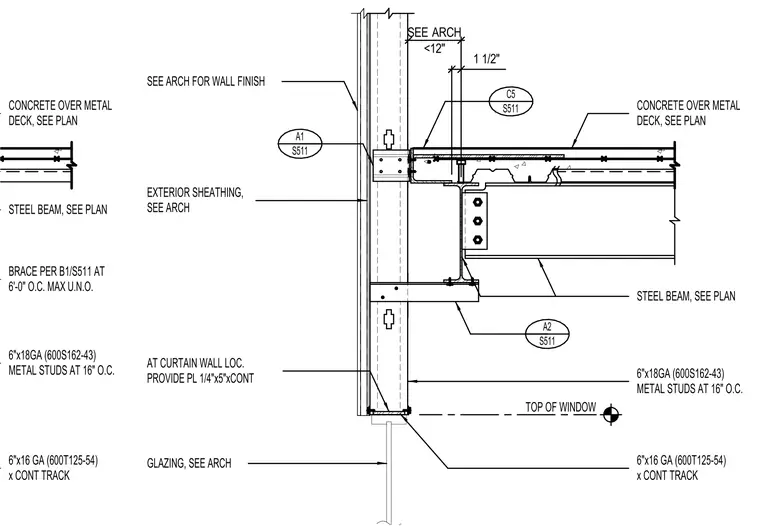

A structural steel beam supports a concrete over metal deck floor system, with floor levels and beam sizes sized per structural plans. Cold-formed metal studs measuring 6 inches by 18 gauge (600S162-43) are spaced at 16 inches on center with continuous 6-inch by 16-gauge track (600T125-54) framing the exterior wall condition. At curtain wall locations, a continuous quarter-inch by 5-inch steel plate is provided along the track. Exterior sheathing and wall finishes are installed as specified by architectural documents above the top of window glazing.
