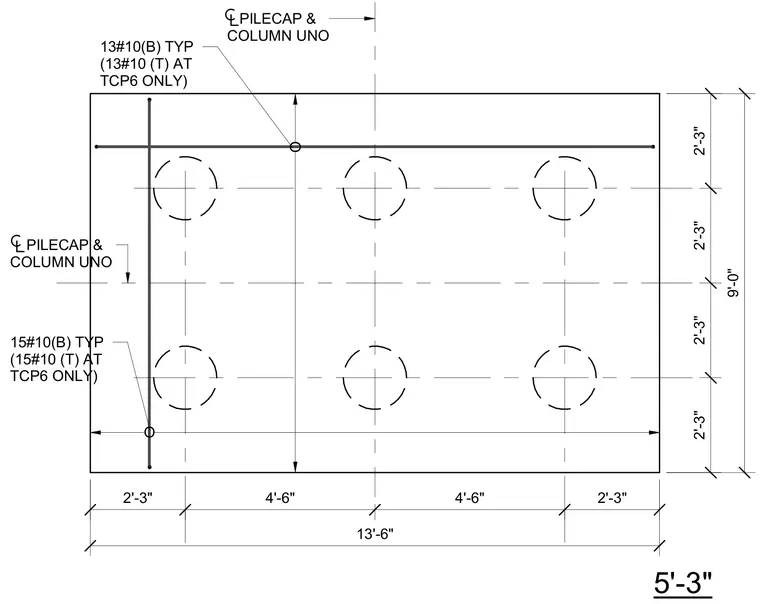

A pile cap with overall dimensions of thirteen feet six inches by nine feet features bottom reinforcement of thirteen number ten bars typically, with fifteen number ten bars at specific top locations. Six pile locations are arranged symmetrically under the cap and centered on the pile cap and column centerlines. Edge distances of two feet three inches and interior spacings of four feet six inches are detailed.
5'-3" PILECAP & COLUMN UNO 13#10(B) TYP (13#10 (T) AT TCP6 ONLY) PILECAP & COLUMN UNO 2'-3" 4'-6" 4'-6" 2'-3" 13'-6" 2'-3" 2'-3" 2'-3" 2'-3" 9'-0" O O 15#10(B) TYP (15#10 (T) AT TCP6 ONLY)
