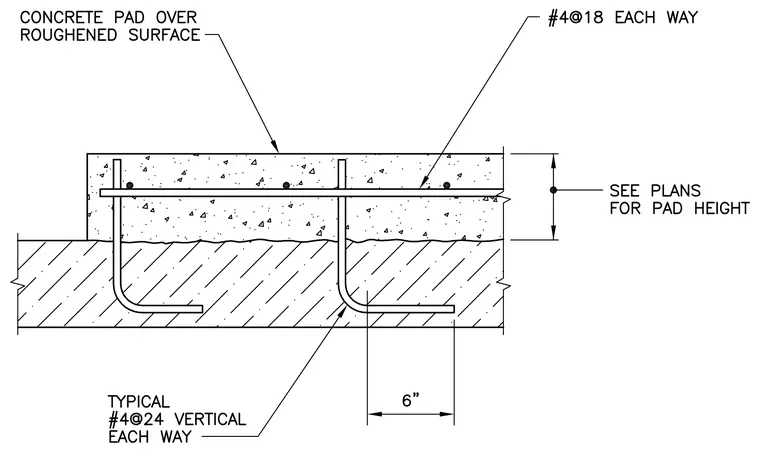

A concrete pad sits over a roughened structural concrete surface with a pad height specified per structural plans. Reinforcement within the pad consists of number 4 reinforcing bars spaced at eighteen inches each way. Dowels anchored into the base slab consist of number 4 vertical reinforcing bars spaced at twenty-four inches each way with a six-inch hooked extension length.
