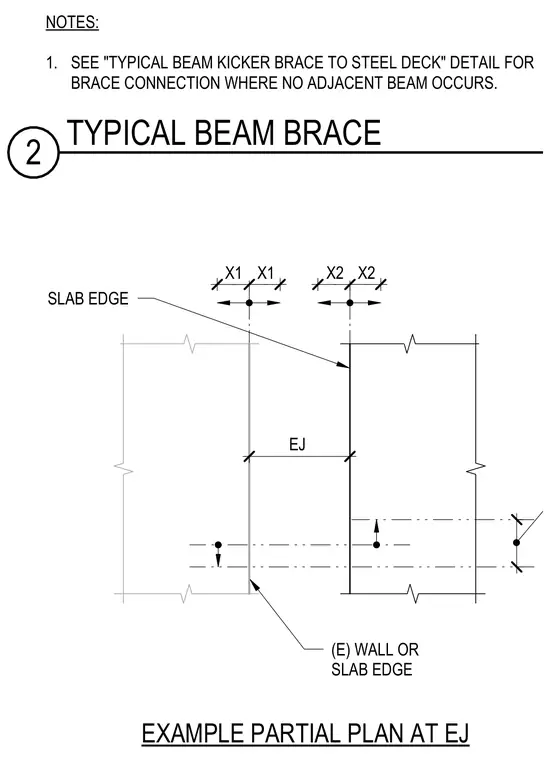

A beam bracing condition is located at an expansion joint between existing and new concrete slabs or walls on a partial plan. The assembly coordinates the structural layout across the joint with specified dimensional clearances. Notes direct the contractor to reference related connection details for kicker braces to steel decks where no adjacent beam occurs.
EXAMPLE PARTIAL PLAN AT EJ 7 1/2" 16" EJ SLAB EDGE X2 X1 5 1/8" 4 7/8" 5 1/8" 4 7/8" X2 X1 (E) WALL OR SLAB EDGE NOTES: 1. SEE "TYPICAL BEAM KICKER BRACE TO STEEL DECK" DETAIL FOR BRACE CONNECTION WHERE NO ADJACENT BEAM OCCURS. 2 TYPICAL BEAM BRACE
