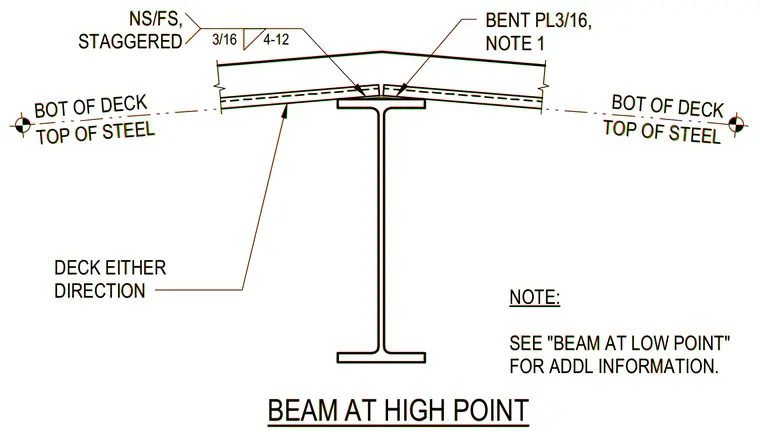

A wide flange steel beam supports a three-sixteenth-inch bent plate at the high point ridge of a sloped roof assembly. The metal deck bears on the top of steel with the deck running either direction across the framing. A staggered three-sixteenth-inch fillet weld with a four-to-twelve pitch is specified on the near side and far side per note one. The top of steel and bottom of deck elevations are aligned at the ridge line.
BENT PL3/16, NOTE 1 DECK EITHER DIRECTION TOP OF STEEL BOT OF DECK BEAM AT HIGH POINT TOP OF STEEL BOT OF DECK NOTE: SEE "BEAM AT LOW POINT" FOR ADDL INFORMATION. NS/FS, STAGGERED 4-12 3/16 BENT PL3/16, NOTE 1 DECK EITHER DIRECTION TOP OF STEEL BOT OF DECK BEAM AT HIGH POINT TOP OF STEEL BOT OF DECK NOTE: SEE "BEAM AT LOW POINT" FOR ADDL INFORMATION. NS/FS, STAGGERED 4-12 3/16
