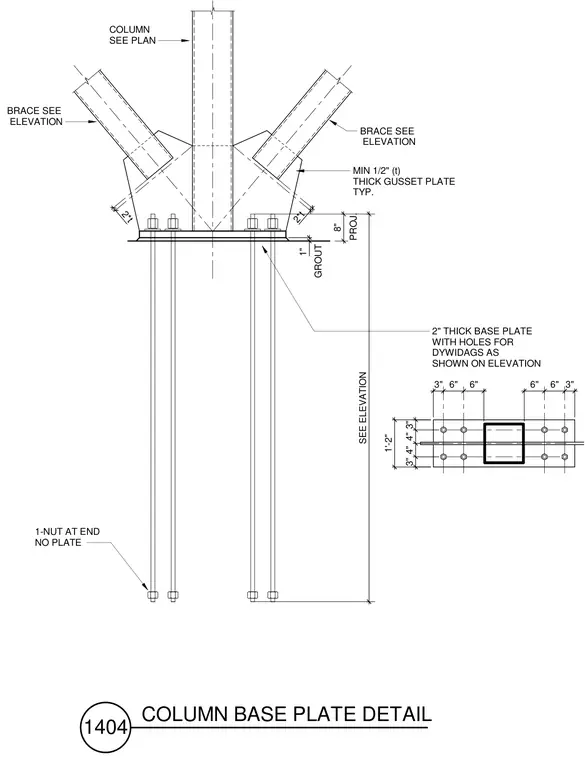

A two-inch thick steel base plate supports a structural steel column and receives diagonal bracing through gusset plates that are a minimum of one-half inch thick. The assembly bears on a one-inch grout layer over the foundation. Dywidag anchor rods pass through the base plate with an eight-inch projection, secured at the embedded end with a single nut and no bearing plate.
2" THICK BASE PLATE WITH HOLES FOR DYWIDAGS AS SHOWN ON ELEVATION COLUMN SEE PLAN BRACE SEE ELEVATION MIN 1/2" (t) THICK GUSSET PLATE TYP. 2*t 1" GROUT 6" 6" 3" 3" 4" 4" 3" 3" 6" 6" 1'-2" BRACE SEE ELEVATION 2*t 1-NUT AT END NO PLATE SEE ELEVATION 8" PROJ. 1404 COLUMN BASE PLATE DETAIL
