Structural · S-DYKFC

Typical Headed Stud Spacing Detail

Materials

Timber / Wood Metal (misc.)

Elements

Columns Beams Decks

Connections

Shear Stud / Composite

About this detail

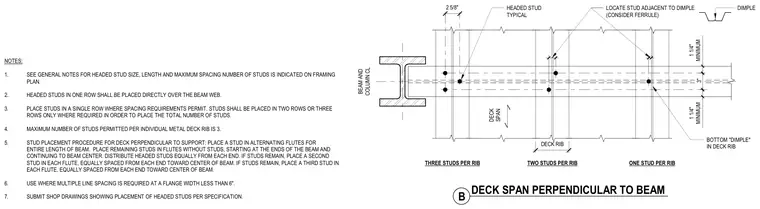

Headed shear studs on metal deck spanning perpendicular to a structural steel beam are installed in a single row placed directly over the beam web, with a maximum of three studs permitted per individual metal deck rib. Single, double, and triple stud configurations are detailed along the beam flange with specific edge distances and centering dimensions relative to the beam and column centerline. The placement procedure specifies staggering studs in alternating flutes and distributing remaining studs equally from each end toward the center of the beam.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
