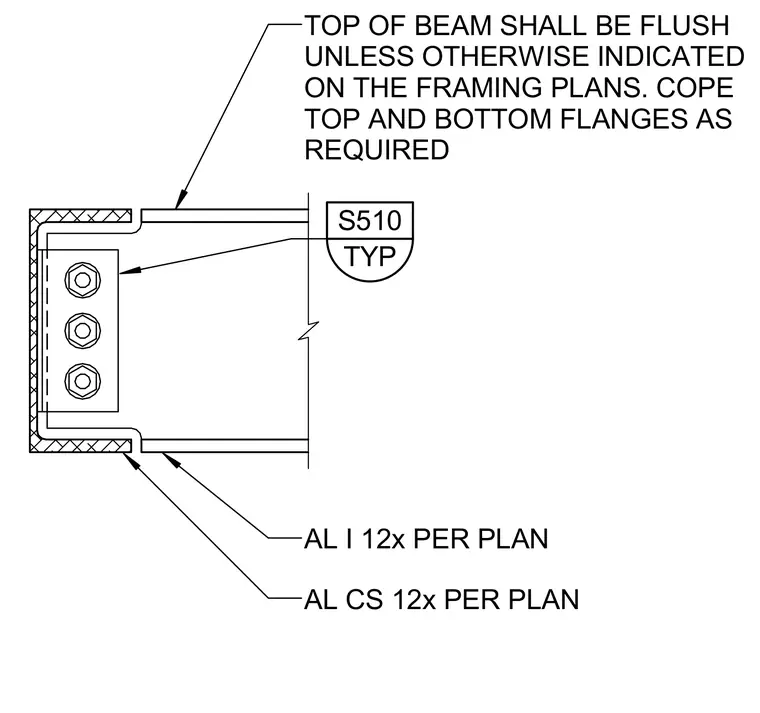

The steel beam features coped top and bottom flanges to align flush with the top of the support as indicated on the framing plans. The beam connects using a vertical shear tab secured with three bolts. Flange copes and member sizes are sized per plan.
AL I 12x PER PLAN TOP OF BEAM SHALL BE FLUSH UNLESS OTHERWISE INDICATED ON THE FRAMING PLANS. COPE TOP AND BOTTOM FLANGES AS REQUIRED AL CS 12x PER PLAN TYP S510
