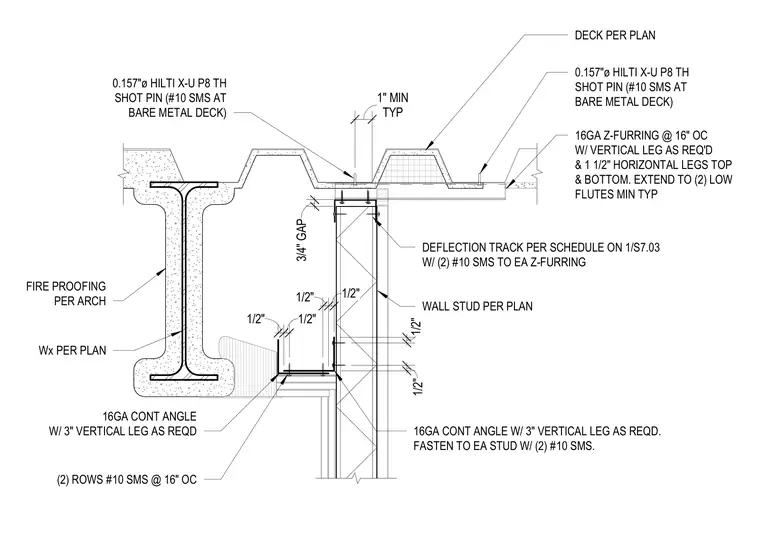

Connection of a cold-formed steel wall stud and deflection track framing to a bare metal deck. The metal deck is fastened using 0.157-inch diameter Hilti X-U P8-TH shot pins or number 10 sheet metal screws at bare metal deck locations, maintaining a one-inch minimum clearance. A deflection track per schedule secures the wall studs with two number 10 sheet metal screws to each Z-furring, which is spaced at 16 inches on center with 1.5-inch horizontal legs and extended to at least two low flutes. Fireproofing is applied per architectural specifications to the structural steel wide-flange beam, which features a three-quarter inch gap above the partition head. Additional sixteen-gauge continuous angles with three-inch vertical legs are fastened with two rows of number 10 sheet metal screws at 16 inches on center.
1/2" 1/2" 1/2" 1/2" 1/2" 1/2" Wx PER PLAN 16GA CONT ANGLE W/ 3" VERTICAL LEG AS REQD (2) ROWS #10 SMS @ 16" OC 16GA CONT ANGLE W/ 3" VERTICAL LEG AS REQD. FASTEN TO EA STUD W/ (2) #10 SMS. WALL STUD PER PLAN DEFLECTION TRACK PER SCHEDULE ON 1/S7.03 W/ (2) #10 SMS TO EA Z-FURRING 16GA Z-FURRING @ 16" OC W/ VERTICAL LEG AS REQ'D & 1 1/2" HORIZONTAL LEGS TOP & BOTTOM. EXTEND TO (2) LOW FLUTES MIN TYP 0.157"ø HILTI X-U P8 TH SHOT PIN (#10 SMS AT BARE METAL DECK) TYP 1" MIN 3/4" GAP 0.157"ø HILTI X-U P8 TH SHOT PIN (#10 SMS AT BARE METAL DECK) DECK PER PLAN FIRE PROOFING PER ARCH
