Bolted Shear Tab Beam Connection

Materials

Steel

Elements

Beams Connections / Plates

Connections

Shear Tab / Single Plate Bolted Connection

About this detail

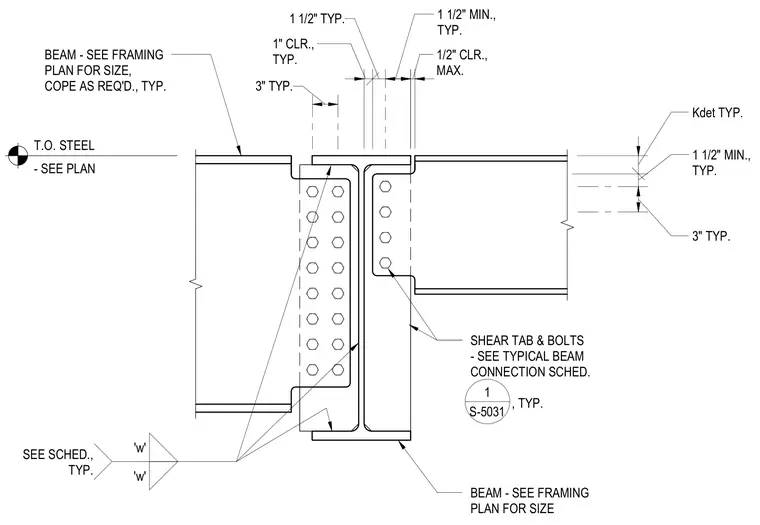

A structural steel beam frames into the flange of a supporting member using a bolted single plate shear tab connection. The supported beam includes a coped top flange for clearance and is sized per the framing plan. A shop-welded shear tab connects to the support column and secures the beam web with high-strength bolts. Typical edge distances, clearances, and fillet welds are indicated by drawing callouts and governed by the structural connection schedule.
