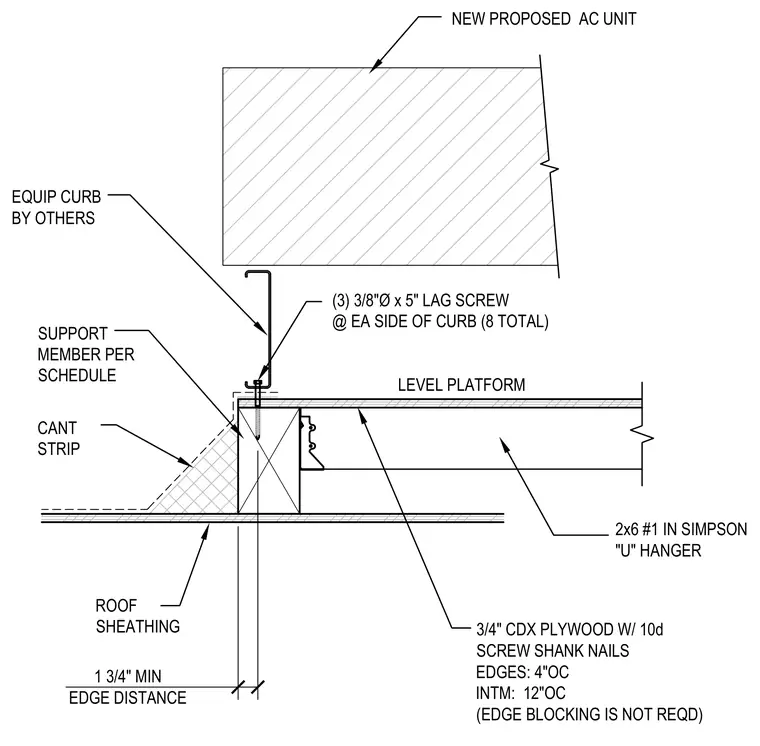

A rooftop leveling platform supports a new air conditioning unit above the existing roof assembly. The platform is framed with 2x6 grade-number-1 timber supported in Simpson joist hangers and sheathed with three-quarter-inch CDX plywood secured by ten-penny screw shank nails spaced four inches on center at edges and twelve inches on center intermediately, with edge blocking omitted. Three three-eighths-inch diameter by five-inch lag screws on each side of the curb, totaling eight, fasten the equipment curb by others to the wood support member sized per schedule. A cant strip transitions from the roof sheathing up to the curb.
EQUIP CURB BY OTHERS NEW PROPOSED AC UNIT (3) 3/8"Ø x 5" LAG SCREW @ EA SIDE OF CURB (8 TOTAL) LEVEL PLATFORM 2x6 #1 IN SIMPSON "U" HANGER SUPPORT MEMBER PER SCHEDULE CANT STRIP ROOF SHEATHING 3/4" CDX PLYWOOD W/ 10d SCREW SHANK NAILS EDGES: 4"OC INTM: 12"OC (EDGE BLOCKING IS NOT REQD) 1 3/4" MIN EDGE DISTANCE
