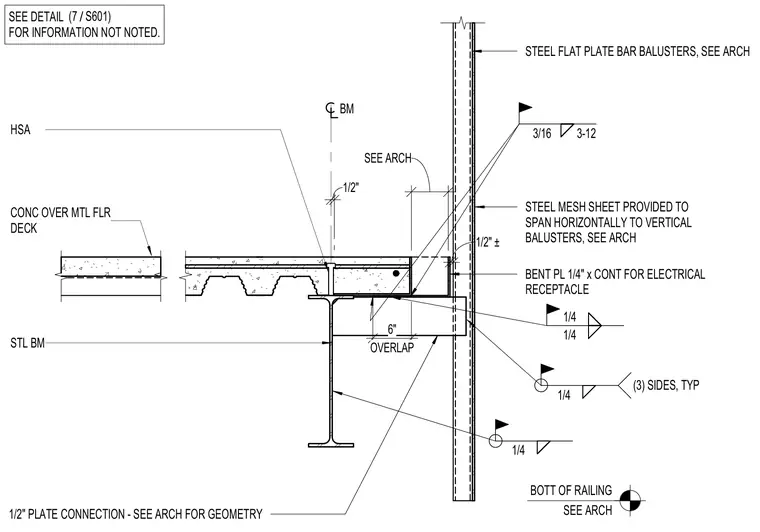

A structural steel beam supports a concrete slab over a metal floor deck with a headed stud anchor. A one-half-inch plate connection provides support for the railing assembly, detailed with a six-inch overlap and welded connections. A continuous one-quarter-inch bent plate is incorporated to accommodate an electrical receptacle. Steel flat plate bar balusters and a steel mesh sheet span horizontally along the railing system.
STL BM CONC OVER MTL FLR DECK 1/2" HSA BM SEE DETAIL FOR INFORMATION NOT NOTED. / (7 S601) 3/16 3-12 1/4 1/2" ± OVERLAP 6" SEE ARCH BENT PL 1/4" x CONT FOR ELECTRICAL RECEPTACLE STEEL FLAT PLATE BAR BALUSTERS, SEE ARCH STEEL MESH SHEET PROVIDED TO SPAN HORIZONTALLY TO VERTICAL BALUSTERS, SEE ARCH BOTT OF RAILING SEE ARCH 1/2" PLATE CONNECTION - SEE ARCH FOR GEOMETRY 1/4 (3) SIDES, TYP 1/4 1/4
