Omf - Weld Access Hole And Beam Cope Detail

Materials

weld

Elements

Columns Beams Connections / Plates Reinforcing

Connections

Welded Connection

About this detail

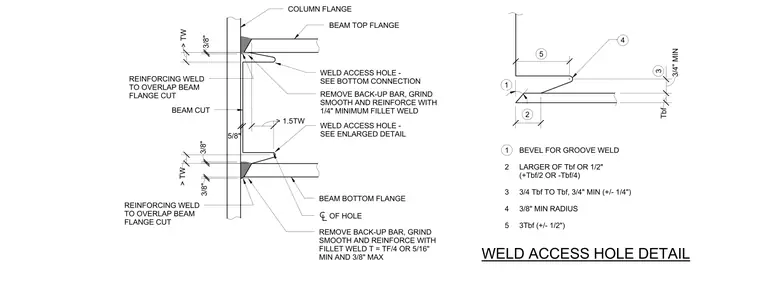

A beam top and bottom flange frames into a structural steel column flange with a complete-joint-penetration groove weld requiring a specified weld access hole. The back-up bar is removed, the root is ground smooth, and the area is reinforced with a one-quarter inch minimum fillet weld. The weld access hole features a three-eighths inch minimum radius, a bevel for groove weld, and specific dimensional tolerances based on the beam flange thickness. Reinforcing welds overlap the beam flange cut to ensure structural integrity at the web-to-flange intersection.
