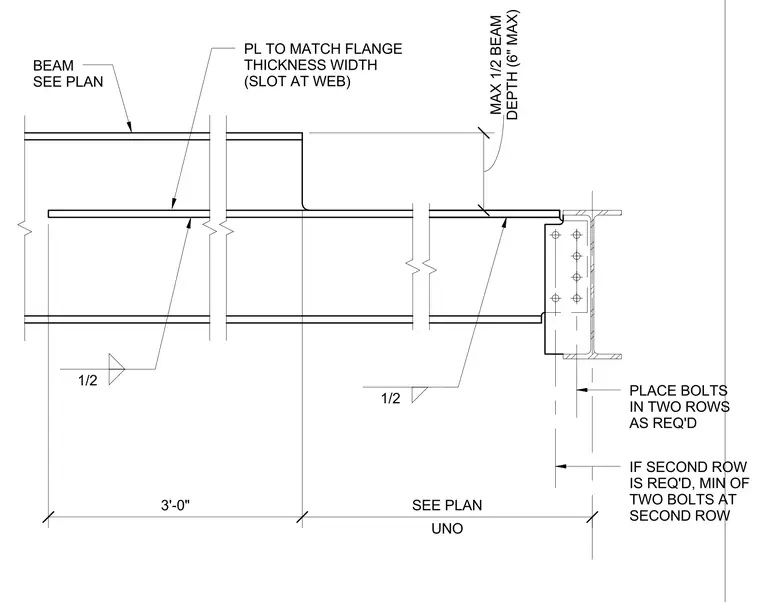

The steel beam features a top flange notch with a maximum depth of one-half the beam depth up to six inches maximum. A plate is inserted into a slot at the beam web, matched to the flange thickness and width, and secured with one-half inch fillet welds. The beam web connects to the supporting member flange using a bolted connection configured in two rows as required. Minimum two bolts are provided at the second row when required, with dimensions extending three feet zero inches unnotched unless noted otherwise.
IF SECOND ROW IS REQ'D, MIN OF TWO BOLTS AT SECOND ROW PLACE BOLTS IN TWO ROWS AS REQ'D BEAM SEE PLAN PL TO MATCH FLANGE THICKNESS WIDTH (SLOT AT WEB) DEPTH (6" MAX) MAX 1/2 BEAM 3'-0" UNO SEE PLAN 1/2 1/2
