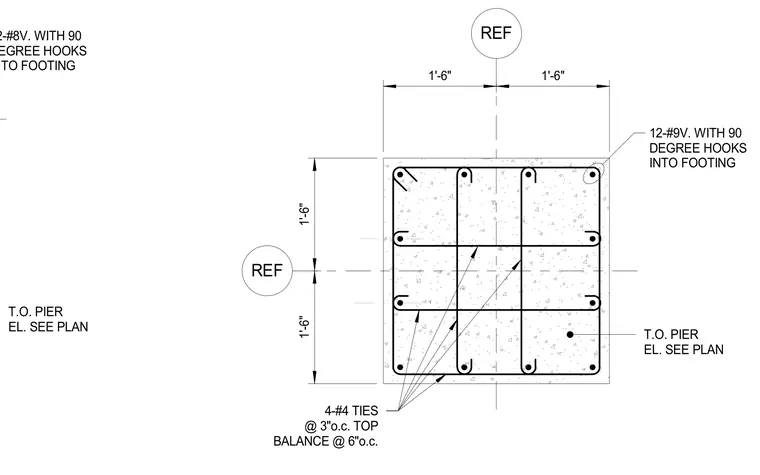

This structural plan detail shows the reinforcement layout for a concrete pier, featuring twelve number nine vertical bars with ninety-degree hooks extending into the footing. The pier is reinforced with number four ties spaced at three inches on center at the top and six inches on center for the balance. The concrete pier dimensions are three feet by three feet, with top of pier elevation sized per plan.
REF 1'-6" 1'-6" 1'-6" 1'-6" 4-#4 TIES @ 3"o.c. TOP BALANCE @ 6"o.c. 12-#9V. WITH 90 DEGREE HOOKS INTO FOOTING T.O. PIER EL. SEE PLAN REF 22-#8V. WITH 90 DEGREE HOOKS INTO FOOTING T.O. PIER EL. SEE PLAN
