Structural · S-DXQNH

Alternate Deck Connection

Materials

Concrete Steel Metal (misc.)

Elements

Roofs Decks Arches Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Deck Attachment Embed Plate

About this detail

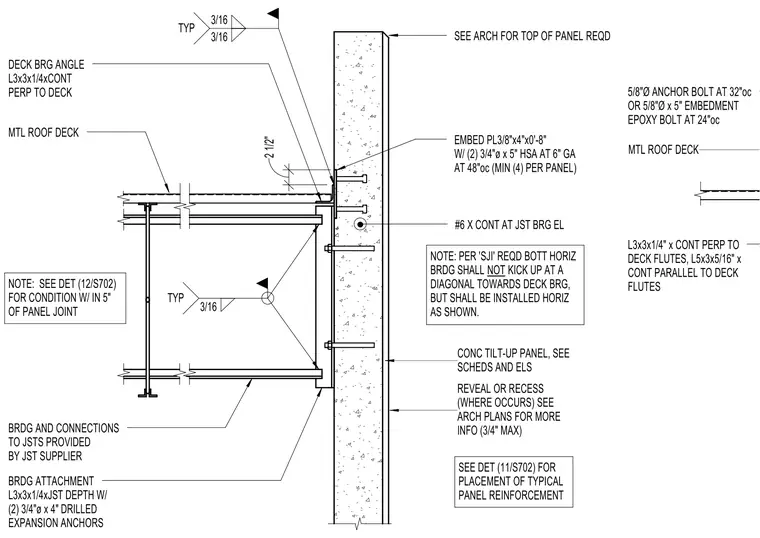

A metal roof deck bears on a continuous deck bearing angle spanning perpendicular to the deck flutes, formed by an L3x3x1/4-inch continuous steel angle. The roof joist frames into a concrete tilt-up wall panel, utilizing a continuous bottom horizontal bridging angle consisting of an L3x3x1/4-inch angle per joist depth secured with two 3/4-inch diameter by 4-inch drilled expansion anchors. The tilt-up concrete wall panel features an embedded steel plate measuring 3/8 by 4 inches by 0 feet 8 inches, anchored with two 3/4-inch diameter by 5-inch heavy stud anchors at 6-inch gauge spaced at 48 inches on center, with a minimum of four anchors per panel. Additional anchorage includes 5/8-inch diameter anchor bolts at 32 inches on center or 5/8-inch diameter by 5-inch embedment epoxy bolts at 24 inches on center. A continuous number 6 reinforcing bar runs horizontally at the joist bearing elevation. Fillet welds of 3/16-inch size connect the structural steel components as indicated.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
