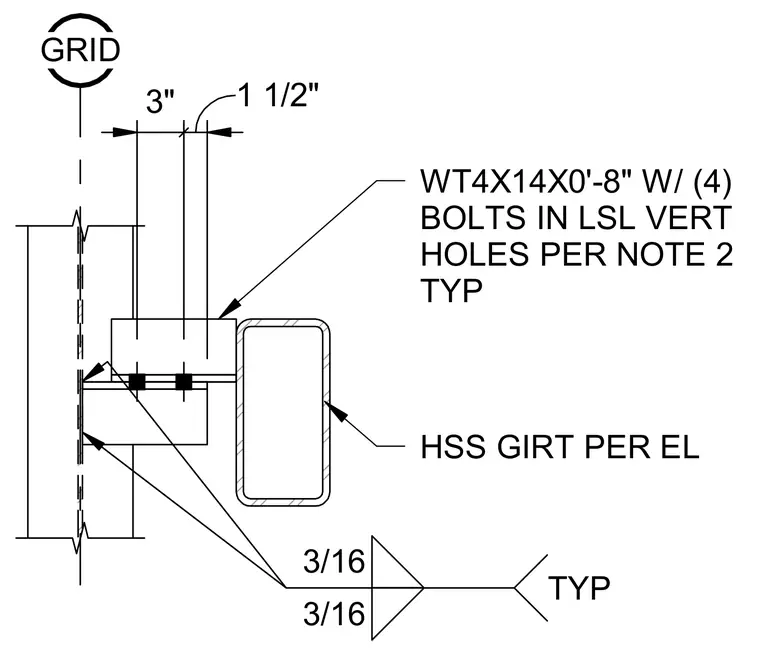

A WT4x14 measuring zero feet eight inches long connects to an LSL member using four bolts in vertical holes per note two. The WT shape also connects to a hollow structural section girt sized per elevation. Fillet welds of three-sixteenths inch are applied typically at the connection joints.
GRID 3" 1 1/2" WT4X14X0'-8" W/ (4) BOLTS IN LSL VERT HOLES PER NOTE 2 TYP HSS GIRT PER EL 3/16 3/16 TYP
