Column Edge of Slab Connection with Bent Plate

Materials

Steel Glass / Glazing

Elements

Columns Floors / Slabs

Connections

HSS Connection

About this detail

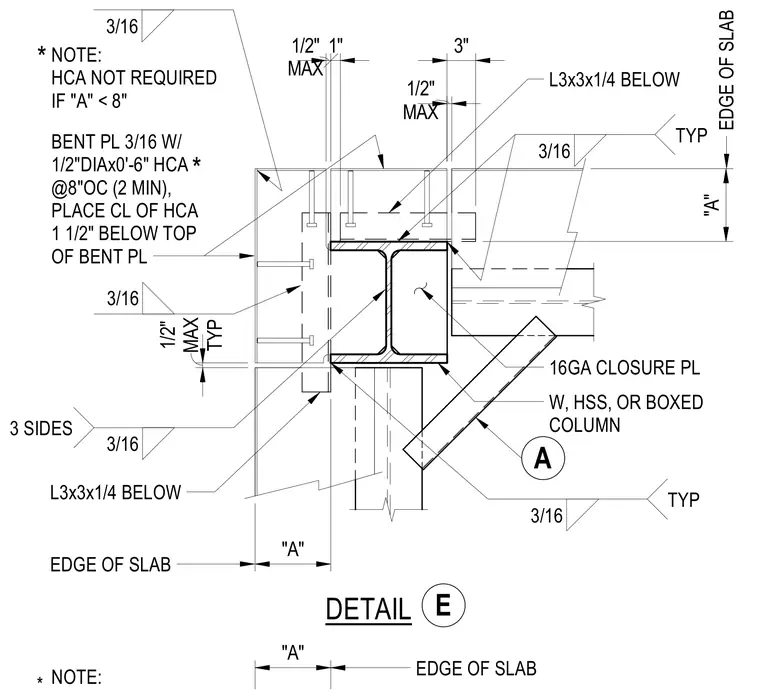

A wide flange, hollow structural section, or boxed column connects at the edge of the slab using a three-sixteenth-inch bent plate with half-inch diameter by six-inch head-coupled anchors spaced at eight inches on center with a minimum of two. The center line of the head-coupled anchors is placed one and a half inches below the top of the bent plate, and these anchors are omitted if dimension A is less than eight inches. An L3x3x1/4 angle is positioned below the edge of the slab. A sixteen-gauge closure plate completes the assembly, secured with three-sixteenth-inch fillet welds typically applied on three sides.
