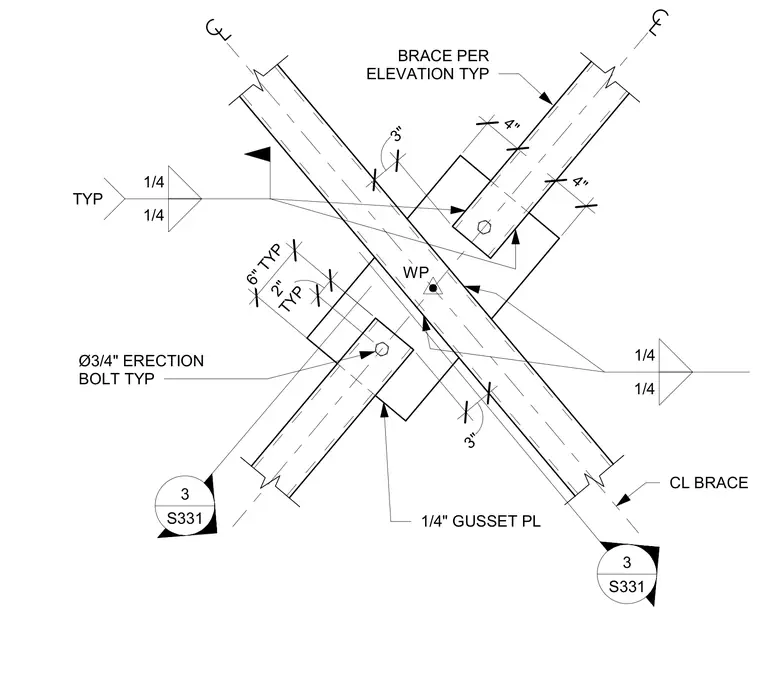

A quarter-inch gusset plate connects intersecting single-story braces centered on a working point. Three-quarter-inch diameter erection bolts provide temporary alignment for the brace members prior to final field welding. One-quarter-inch fillet welds secure the gusset plate assembly along the structural members. Brace sizes and configurations follow the structural framing elevations.
BRACE PER ELEVATION TYP TYP 2" 6" TYP 3" 3" 4" 4" 3 S331 3 S331 1/4" GUSSET PL CL BRACE 1/4 1/4 TYP Ø3/4" ERECTION BOLT TYP 1/4 1/4 WP
