Structural · S-DXKWW

Concrete Wall Corner and Intersection Reinforcing Details

Materials

Elements

About this detail

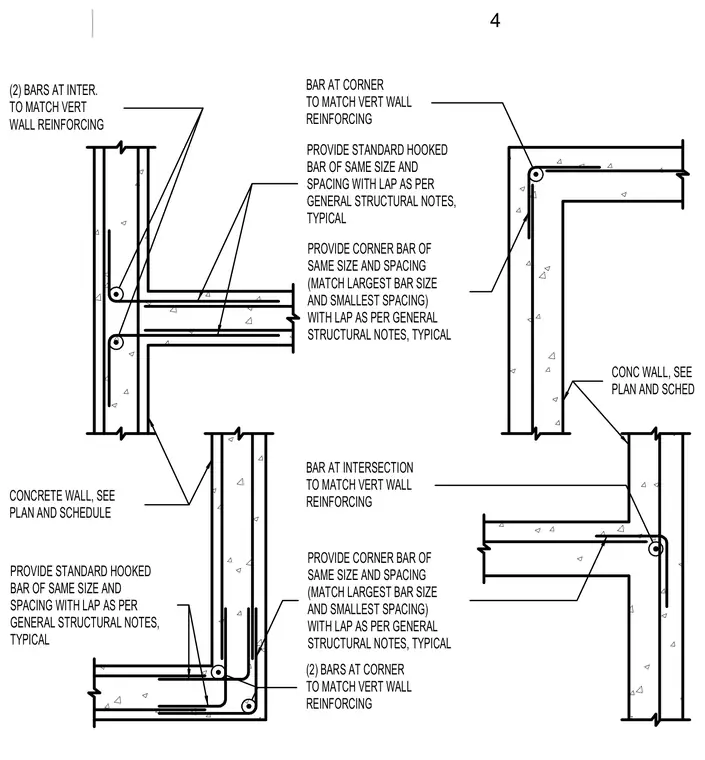

Reinforced concrete wall corners and T-intersections require specific dowel placement, corner bars, and lap splices to maintain structural continuity. Vertical wall reinforcing is matched with corner bars and hooked bars of the same size and spacing as specified in the general structural notes. Two additional vertical bars are placed at wall intersections and corners to handle concentrated stresses. Horizontal reinforcement wraps around corners with standard hooked laps sized per structural requirements.
