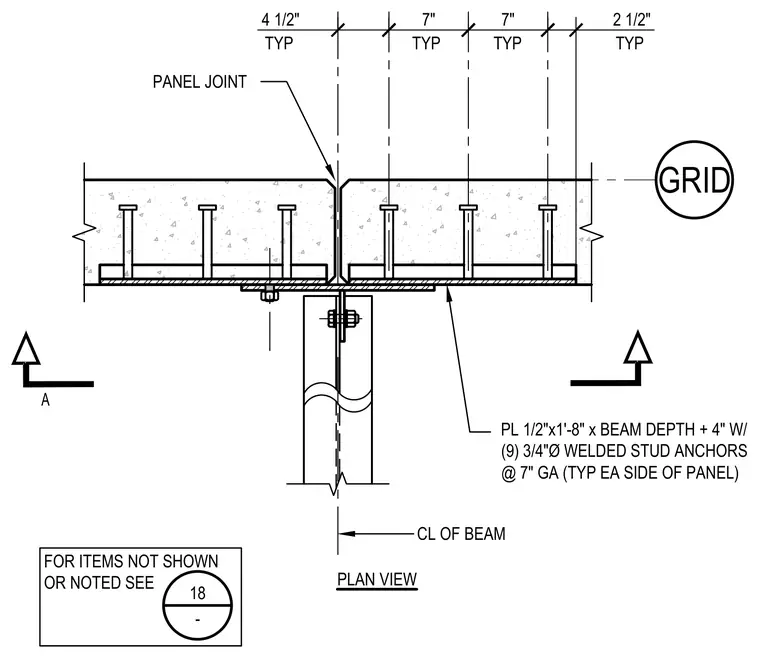

A structural steel beam connects below a concrete panel joint centered on the structural grid line. A half-inch by one-foot eight-inch plate is embedded in the concrete panel, sized to the beam depth plus four inches. Nine three-quarter-inch diameter welded stud anchors are spaced at seven inches gauge on each side of the panel joint.
GRID 4 1/2" 7" 7" 2 1/2" PANEL JOINT CL OF BEAM PL 1/2"x1'-8" x BEAM DEPTH + 4" W/ (9) 3/4"Ø WELDED STUD ANCHORS @ 7" GA (TYP EA SIDE OF PANEL) TYP TYP TYP TYP PLAN VIEW A FOR ITEMS NOT SHOWN OR NOTED SEE 18 -
