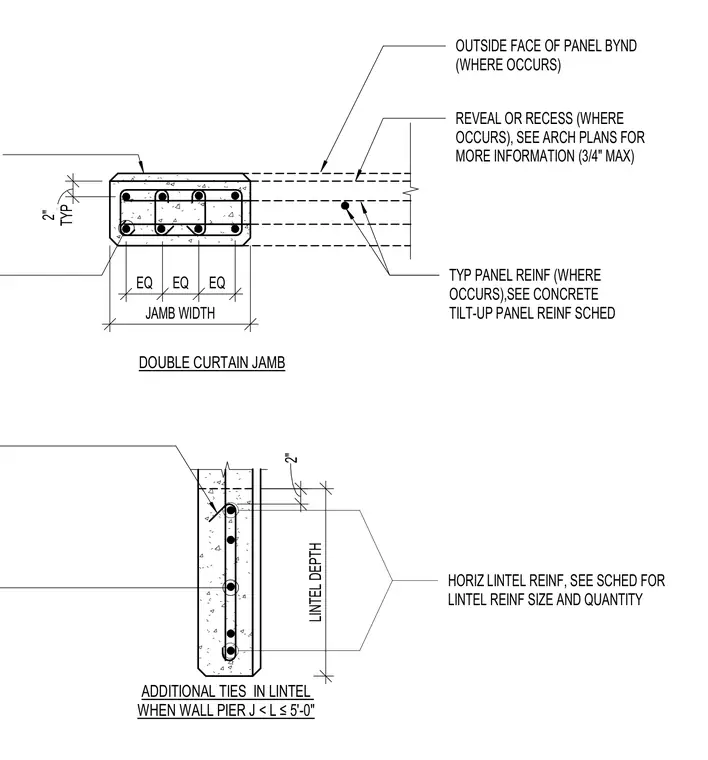

Concrete reinforcement layout for a double curtain jamb and a horizontal lintel in tilt-up concrete panels. The jamb section defines the jamb width with equally spaced reinforcement bars and typical two-inch clear spacing. The lintel section features horizontal lintel reinforcement sized according to the schedule with additional ties required when the wall pier length is less than or equal to five feet. Reveals or recesses are coordinated with architectural plans maintaining a maximum three-quarter-inch depth at the outside face of the panel.
REVEAL OR RECESS (WHERE OCCURS), SEE ARCH PLANS FOR MORE INFORMATION (3/4" MAX) OUTSIDE FACE OF PANEL BYND (WHERE OCCURS) TYP PANEL REINF (WHERE OCCURS),SEE CONCRETE TILT-UP PANEL REINF SCHED DOUBLE CURTAIN JAMB EQ EQ EQ JAMB WIDTH TYP 2" HORIZ LINTEL REINF, SEE SCHED FOR LINTEL REINF SIZE AND QUANTITY 2" LINTEL DEPTH ADDITIONAL TIES IN LINTEL WHEN WALL PIER J < L ≤5'-0"
