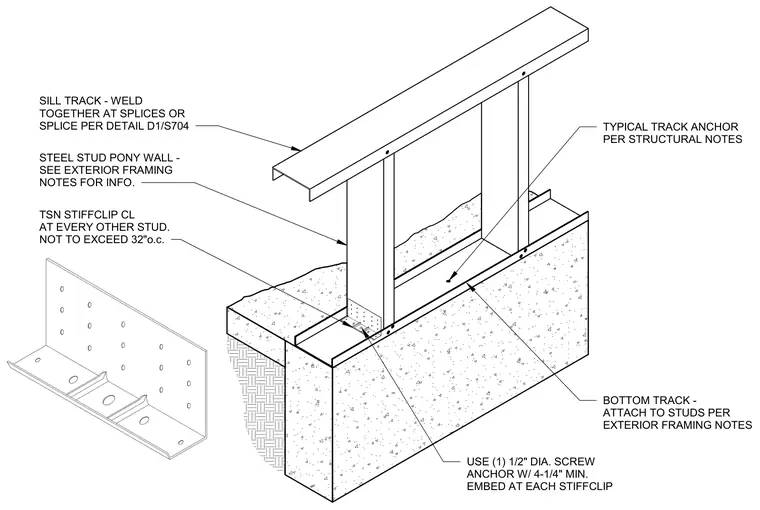

A steel stud pony wall bears on a concrete foundation and is anchored using TSN StiffClip CL clips placed at every other stud, not to exceed thirty-two inches on center. Each stiffclip is secured to the bottom track with one half-inch diameter screw anchor having a four-and-a-quarter-inch minimum embedment. The bottom track is attached to the studs per exterior framing notes, and the sill track is welded together at splices or spliced per detail D1/S704. Typical track anchors are installed per structural notes.
USE (1) 1/2" DIA. SCREW ANCHOR W/ 4-1/4" MIN. EMBED AT EACH STIFFCLIP BOTTOM TRACK - ATTACH TO STUDS PER EXTERIOR FRAMING NOTES SILL TRACK - WELD TOGETHER AT SPLICES OR SPLICE PER DETAIL D1/S704 STEEL STUD PONY WALL - SEE EXTERIOR FRAMING NOTES FOR INFO. TSN STIFFCLIP CL AT EVERY OTHER STUD. NOT TO EXCEED 32"o.c. TYPICAL TRACK ANCHOR PER STRUCTURAL NOTES
