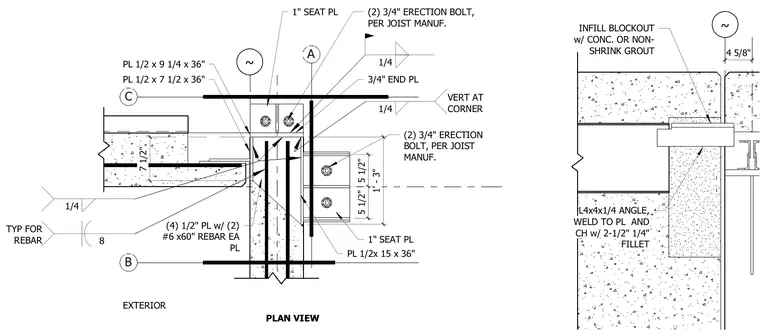

An exterior corner column and joist connection features an embedded plate assembly with four 1/2-inch plates each reinforced with two number 6 by 60-inch rebar. A 1-inch seat plate and a 3/4-inch end plate connect to the steel channel with two 3/4-inch erection bolts per the joist manufacturer specifications. Fillet welds of 1/4-inch size secure the connection plates and angles, including an L4x4x1/4 angle welded to the plate and channel with two 2-1/2 inch by 1/4-inch fillet welds. An infill blockout with concrete or non-shrink grout is provided at the perimeter edge adjacent to the exterior wall assembly.
EXTERIOR PLAN VIEW 1' - 3" (4) 1/2" PL w/ (2) #6 x60" REBAR EA PL PL 1/2 x 7 1/2 x 36" PL 1/2x 15 x 36" TYP FOR REBAR 8 1/4 1/4 VERT AT CORNER PL 1/2 x 9 1/4 x 36" 5 1/2" 5 1/2" ~ (2) 3/4" ERECTION BOLT, PER JOIST MANUF. 1" SEAT PL (2) 3/4" ERECTION BOLT, PER JOIST MANUF. 3/4" END PL ~ 4 5/8" INFILL BLOCKOUT w/ CONC. OR NON- SHRINK GROUT L4x4x1/4 ANGLE, WELD TO PL AND CH w/ 2-1/2" 1/4" FILLET 7 1/2" 1/4 1" SEAT PL
