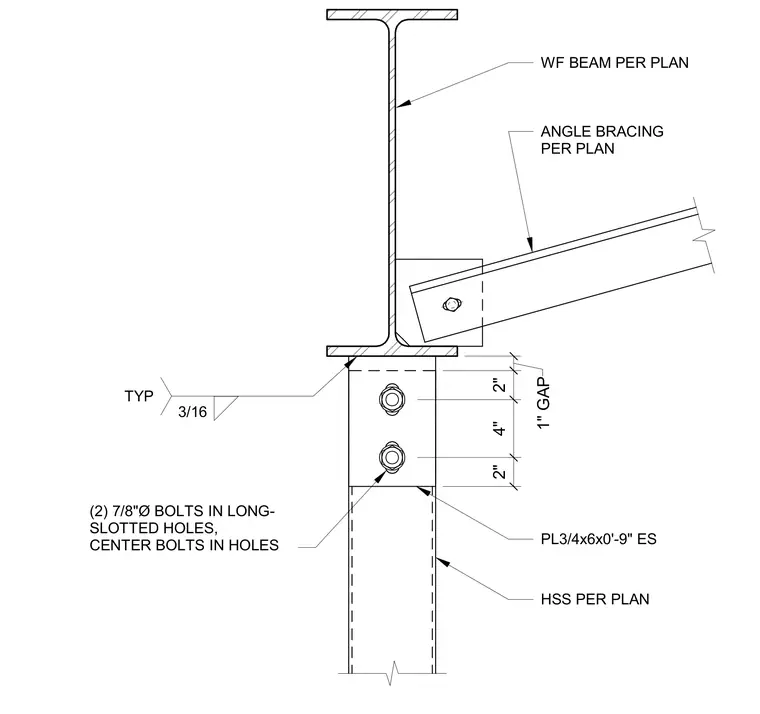

An HSS post supports a wide-flange beam sized per plan with a one-inch gap between members. A three-quarter-inch thick by six-inch by nine-inch plate is welded to each side using three-sixteenth-inch typical fillet welds. Two seven-eighth-inch diameter bolts in long-slotted holes secure the connection, with the bolts centered in the holes. An angle brace sized per plan connects to a gusset plate welded to the underside of the beam flange.
WF BEAM PER PLAN HSS PER PLAN 3/16 TYP PL3/4x6x0'-9" ES 2" 4" 2" 1" GAP (2) 7/8"Ø BOLTS IN LONG- SLOTTED HOLES, CENTER BOLTS IN HOLES ANGLE BRACING PER PLAN
