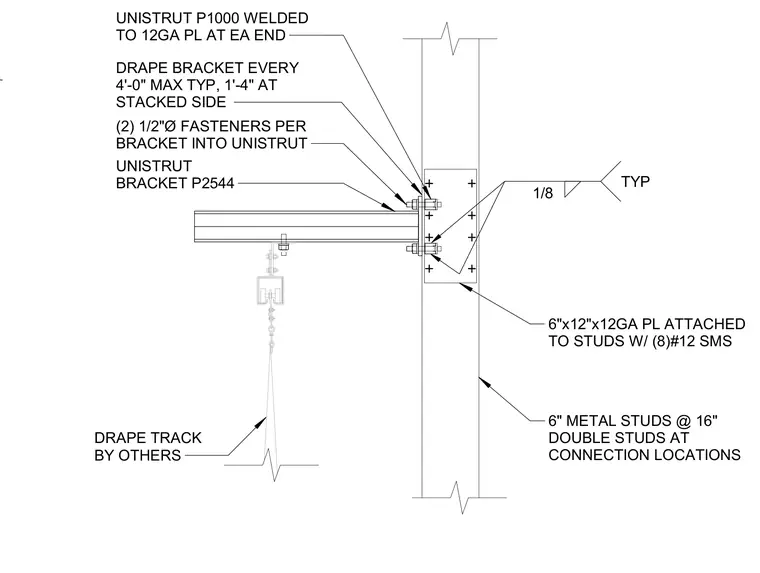

A continuous Unistrut P1000 channel is welded to each end of a six-by-twelve-inch twelve-gauge steel plate with a one-eighth-inch fillet weld. This backing plate is attached to six-inch metal studs spaced at sixteen inches on center using eight number-twelve sheet metal screws, with double studs provided at connection locations. A Unistrut P2544 bracket fastens into the channel using two half-inch-diameter fasteners per bracket. Drape brackets are spaced at a maximum of four feet on center typically, and one foot four inches at the stacked side to support the drape track.
DRAPE BRACKET EVERY 4'-0" MAX TYP, 1'-4" AT STACKED SIDE (2) 1/2"Ø FASTENERS PER BRACKET INTO UNISTRUT UNISTRUT BRACKET P2544 DRAPE TRACK BY OTHERS 6"x12"x12GA PL ATTACHED TO STUDS W/ (8)#12 SMS 6" METAL STUDS @ 16" DOUBLE STUDS AT CONNECTION LOCATIONS UNISTRUT P1000 WELDED TO 12GA PL AT EA END 1/8 TYP
