A concrete housekeeping pad sits atop a suspended concrete slab with a maximum height of six inches. The pad is reinforced with number four bars at twelve inches on center each way, tied into number four dowels placed at twenty-four inches on center around the perimeter of the pad. The contractor has the option to drill and epoxy dowels with a four-inch embedment in lieu of cast-in dowels, provided that care is taken not to damage the slab post-tensioning tendons or existing reinforcing.

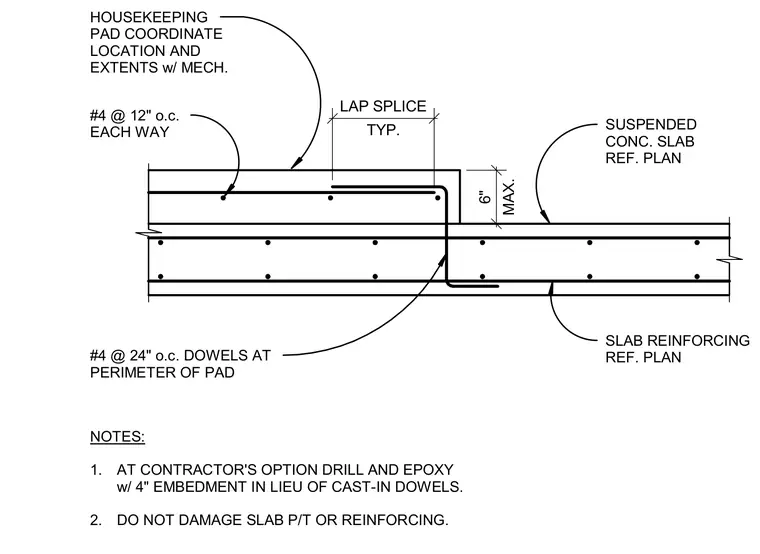

SLAB REINFORCING REF. PLAN MAX. 6" SUSPENDED CONC. SLAB REF. PLAN #4 @ 12" o.c. EACH WAY HOUSEKEEPING PAD COORDINATE LOCATION AND EXTENTS w/ MECH. #4 @ 24" o.c. DOWELS AT PERIMETER OF PAD NOTES: 1. AT CONTRACTOR'S OPTION DRILL AND EPOXY w/ 4" EMBEDMENT IN LIEU OF CAST-IN DOWELS. 2. DO NOT DAMAGE SLAB P/T OR REINFORCING. TYP. LAP SPLICE
