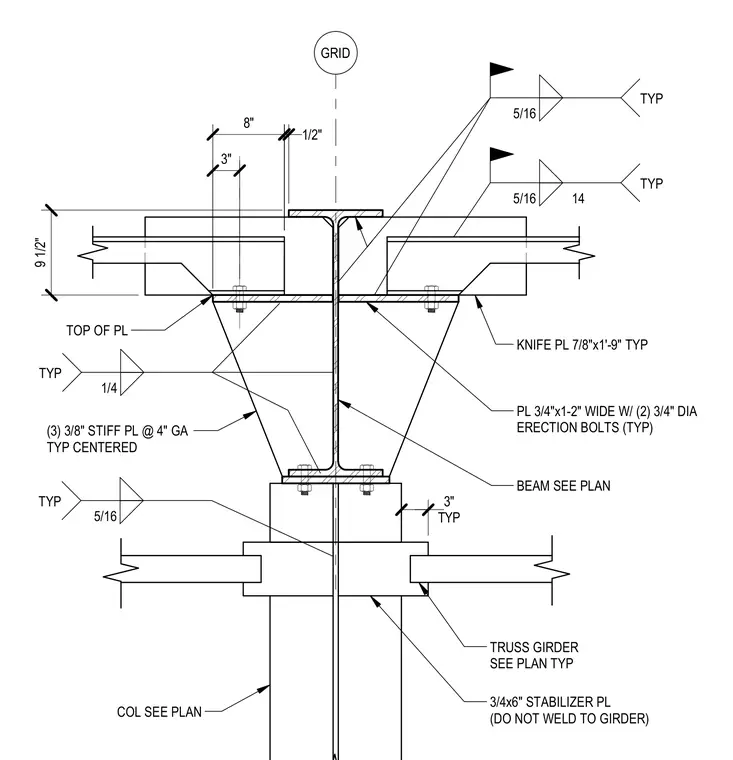

A structural steel girder frames into a column using a 7/8-inch by 1-foot-9-inch knife plate welded to the assembly. A 3/4-inch by 1-2-inch plate with two 3/4-inch diameter erection bolts provides temporary connection support. Three 3/8-inch stiffener plates at 4-inch gauge are centered along the assembly and welded with 1/4-inch and 5/16-inch fillet welds. A 3/4-inch by 6-inch stabilizer plate wraps around the column and is left unwelded to the girder as noted. The supporting column and framing beams are sized per plan.
GRID TOP OF PL KNIFE PL 7/8"x1'-9" TYP PL 3/4"x1-2" WIDE W/ (2) 3/4" DIA ERECTION BOLTS (TYP) BEAM SEE PLAN TRUSS GIRDER SEE PLAN TYP 3/4x6" STABILIZER PL (DO NOT WELD TO GIRDER) COL SEE PLAN 9 1/2" 3" 1/2" 8" (3) 3/8" STIFF PL @ 4" GA TYP CENTERED TYP 3" 5/16 14 TYP 5/16 TYP 5/16 TYP 1/4 TYP
