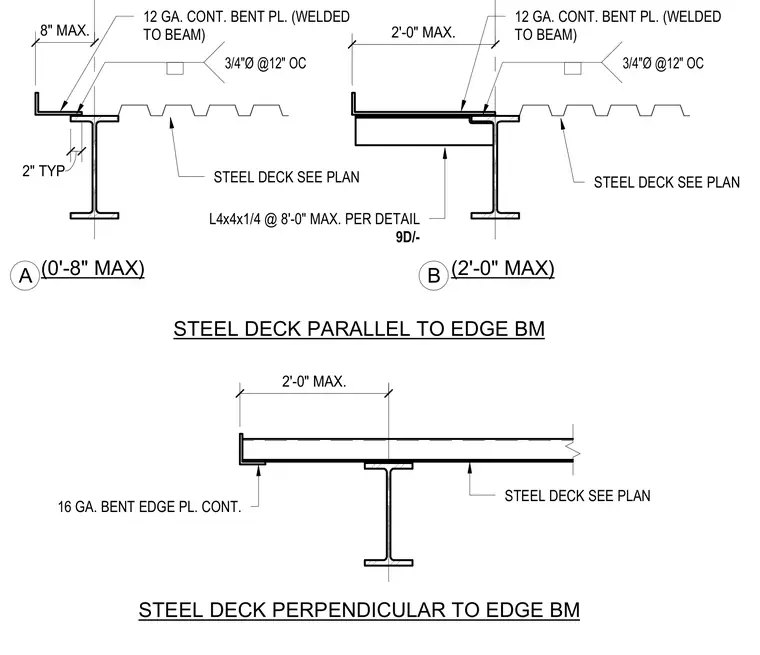

Steel deck bears on structural steel edge beams using continuous bent plates and welded connections. The parallel deck condition incorporates a continuous twelve-gauge bent plate welded to the beam flange with three-quarter-inch diameter studs at twelve inches on center, supplemented by an L4x4x1/4 angle spaced at eight feet maximum. The perpendicular deck condition utilizes a continuous sixteen-gauge bent edge plate beneath the metal deck. Dimensions regulate maximum overhangs and edge clearances to the beam centerline.
STEEL DECK PERPENDICULAR TO EDGE BM STEEL DECK PARALLEL TO EDGE BM 16 GA. BENT EDGE PL. CONT. STEEL DECK SEE PLAN STEEL DECK SEE PLAN 12 GA. CONT. BENT PL. (WELDED TO BEAM) 8" MAX. 2'-0" MAX. 3/4"Ø @12" OC STEEL DECK SEE PLAN 12 GA. CONT. BENT PL. (WELDED TO BEAM) 2'-0" MAX. L4x4x1/4 @ 8'-0" MAX. PER DETAIL 9D/- 3/4"Ø @12" OC (0'-8" MAX) A (2'-0" MAX) 2" TYP B
