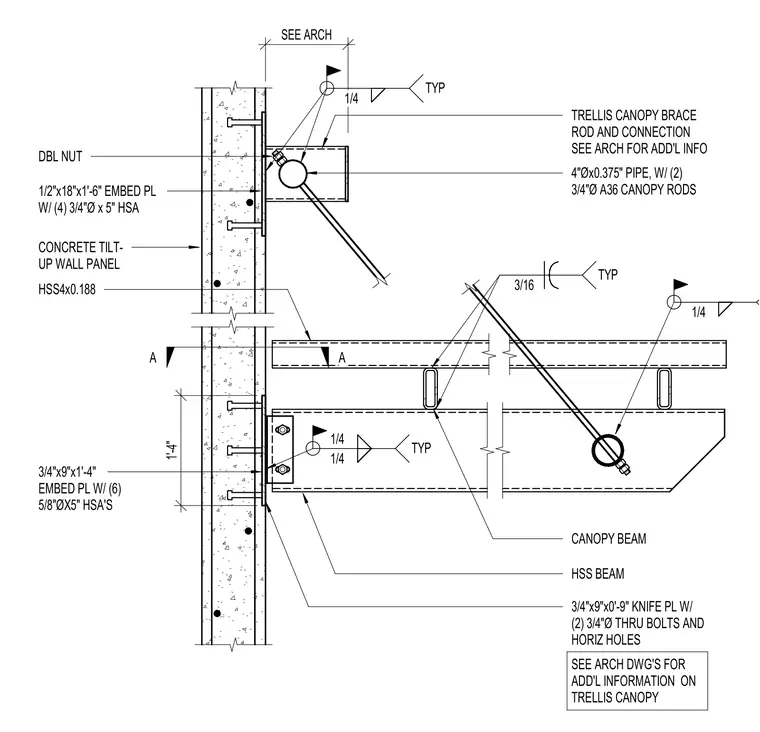

This assembly connects a trellis canopy to a concrete tilt-up wall panel using two distinct embed plate configurations. The upper connection utilizes a 1/2-inch by 18-inch by 1-foot-6-inch embed plate secured with four 3/4-inch diameter by 5-inch heavy-duty sleeve anchors to support a 4-inch diameter by 0.375-inch wall pipe and two 3/4-inch diameter A36 steel canopy rods. The lower connection features a 3/4-inch by 9-inch by 1-foot-4-inch embed plate with six 5/8-inch diameter by 5-inch heavy-duty sleeve anchors, which supports a hollow structural section beam via a 3/4-inch by 9-inch by 0-foot-9-inch knife plate. The knife plate is fastened with two 3/4-inch diameter through-bolts in horizontal holes. All primary structural steel connections are field-welded with 1/4-inch fillet welds, while the canopy rod bracing is attached with 3/16-inch fillet welds.
