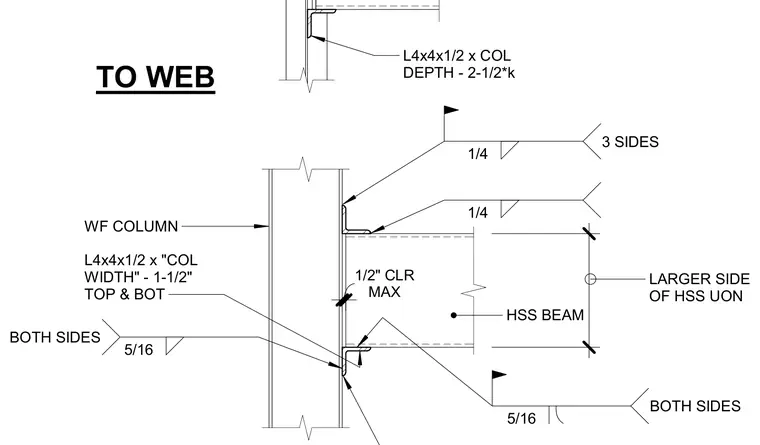

An HSS beam connects to the web of a wide flange column using top and bottom structural angles sized as L4x4x1/2. The angles feature a length equal to the column width minus one and a half inches. A one-half-inch maximum clearance is maintained between the beam end and the column web. Five-sixteenths-inch fillet welds secure both sides of the angles, while one-quarter-inch welds are applied on three sides.
L4x4x1/2 x "COL WIDTH" - 1-1/2" TOP & BOT WF COLUMN L4x4x1/2 x COL DEPTH - 2-1/2*k HSS BEAM TO WEB LARGER SIDE OF HSS UON 5/16 BOTH SIDES 5/16 BOTH SIDES 1/4 3 SIDES 1/4 MAX 1/2" CLR
