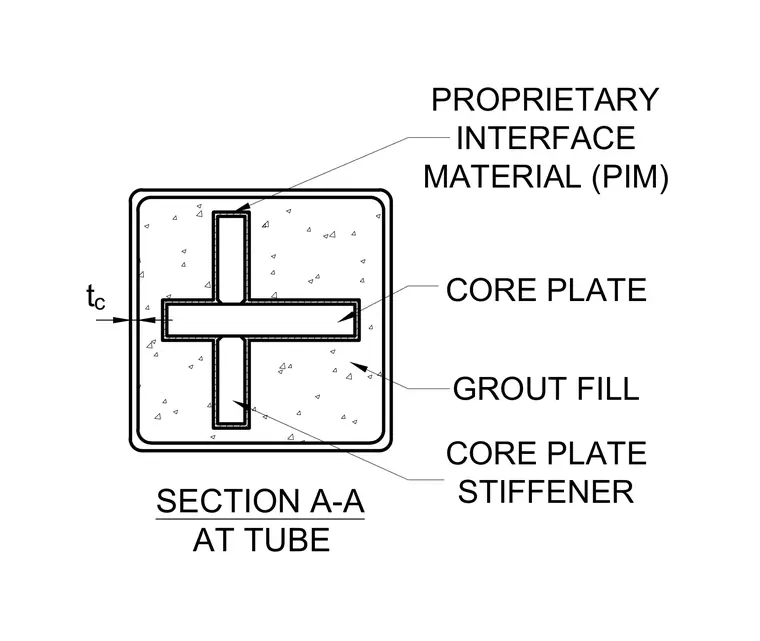

A cross-section through a structural steel tube contains a cruciform core plate assembly surrounded by grout fill. A proprietary interface material lines the inner perimeter of the tube surrounding the core plate wings. A core plate stiffener is provided, and the thickness of the core plate is indicated by the variable t sub c.
CORE PLATE STIFFENER PROPRIETARY INTERFACE MATERIAL (PIM) t c GROUT FILL CORE PLATE SECTION A-A AT TUBE
