A steel joist bears on an embed plate assembly located across a concrete tilt-up wall panel joint. The assembly features a half-inch by twelve-inch by one-foot two-inch embed plate anchored by four three-quarter-inch diameter by five-inch heavy stud anchors in each panel. A three-eighths-inch by four-inch steel plate bridges the joint, secured with a three-quarter-inch diameter A325 bolt placed in a long slotted hole parallel to the tilt-up panel to allow for movement. The joist rests on a bearing angle measuring four by four by three-eighths inches and eight inches long, reinforced with two one-half-inch stiffener plates welded with typical fillet welds.

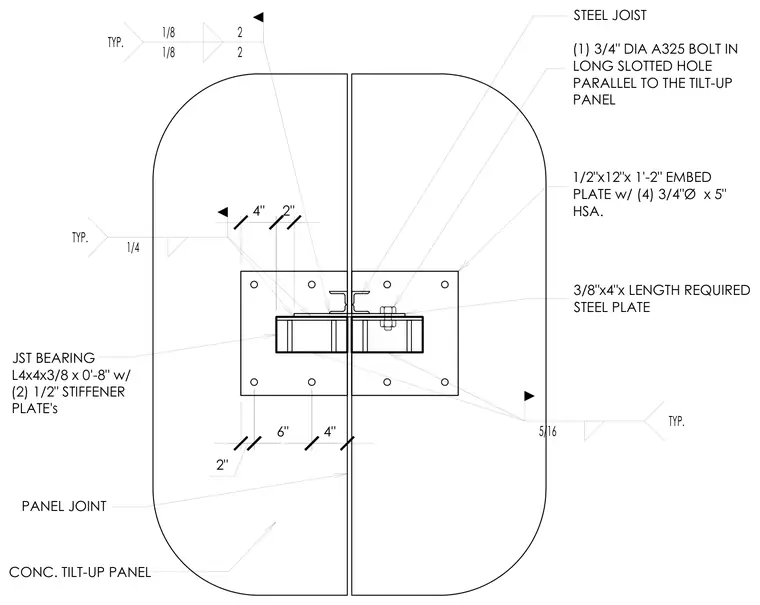

(1) 3/4" DIA A325 BOLT IN LONG SLOTTED HOLE PARALLEL TO THE TILT-UP PANEL TYP. 1/4 CONC. TILT-UP PANEL JST BEARING L4x4x3/8 x 0'-8" w/ (2) 1/2" STIFFENER PLATE's PANEL JOINT 4" 2" 6" 4" 2" 1/2"x12"x 1'-2" EMBED PLATE w/ (4) 3/4"Ø x 5" HSA. 3/8"x4"x LENGTH REQUIRED STEEL PLATE TYP. 5/16 TYP. 1/8 1/8 2 2 STEEL JOIST
