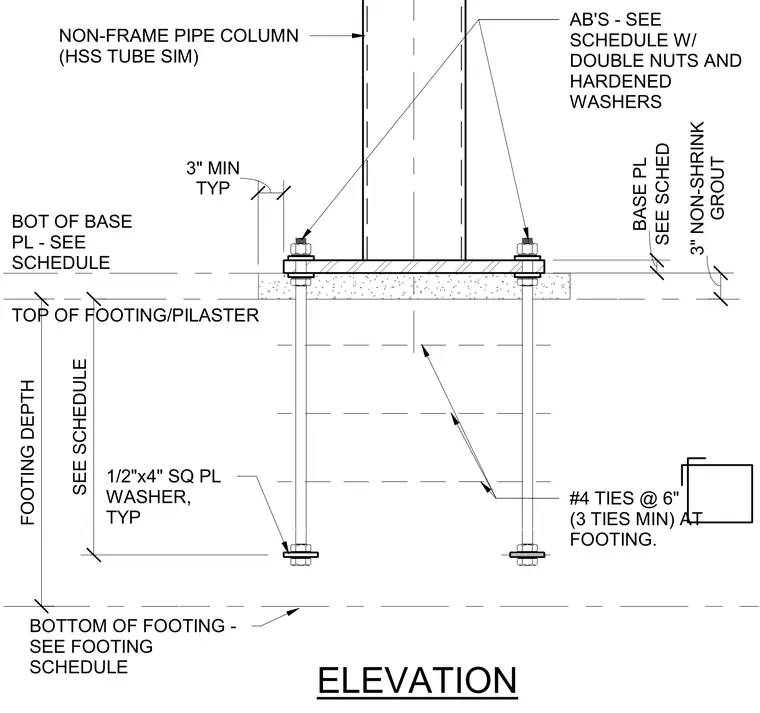

A non-frame pipe column, similar to a hollow structural section, bears on a base plate set above a concrete footing with three inches of non-shrink grout. Anchor bolts secure the base plate and feature double nuts and hardened washers at the top. The embedment length includes a half-inch by four-inch square plate washer embedded at the lower end of each anchor bolt. The concrete footing is reinforced with number four ties spaced at six inches on center with a minimum of three ties at the footing.
NON-FRAME PIPE COLUMN (HSS TUBE SIM) BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/PILASTER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS ELEVATION BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP #4 TIES @ 6" (3 TIES MIN) AT FOOTING. TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH SEE SCHEDULE
