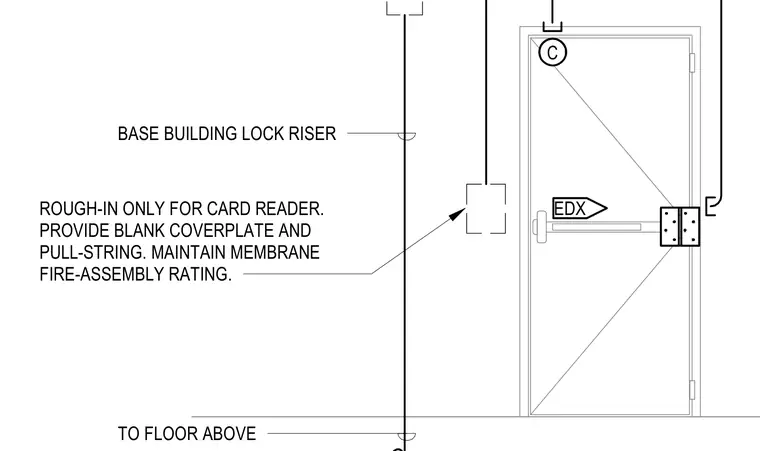

A base building lock riser connects to the floor above with rough-in only provisions for a card reader. The installation includes a blank coverplate and pull-string while maintaining the membrane fire-assembly rating.
EDX C BASE BUILDING LOCK RISER TO FLOOR ABOVE ROUGH-IN ONLY FOR CARD READER. PROVIDE BLANK COVERPLATE AND PULL-STRING. MAINTAIN MEMBRANE FIRE-ASSEMBLY RATING.
