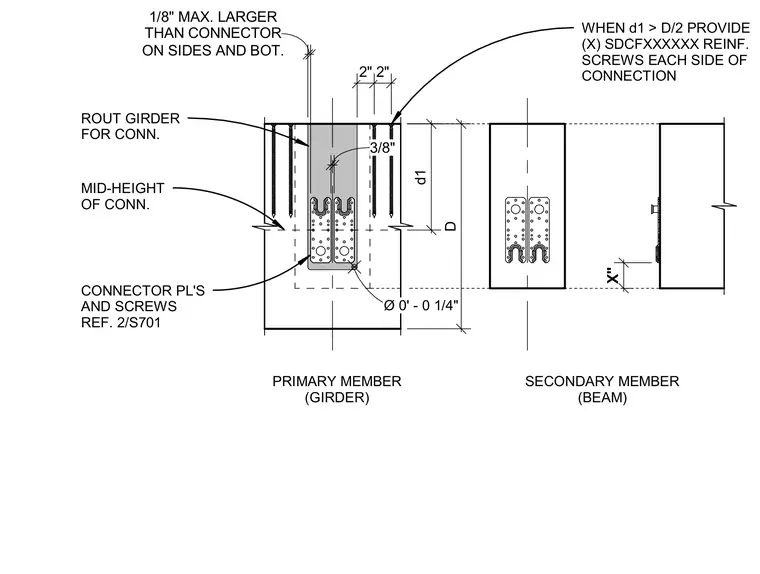

A secondary beam connects to a primary girder using double connector plates and screws. The primary girder is routed to receive the connectors, maintaining a maximum one-eighth inch clearance on the sides and bottom. When dimension d1 exceeds half the total depth D, specified reinforcing screws are required on each side of the connection.
Ø 0' - 0 1/4" X" SECONDARY MEMBER (BEAM) PRIMARY MEMBER (GIRDER) ON SIDES AND BOT. 1/8" MAX. LARGER THAN CONNECTOR 3/8" ROUT GIRDER FOR CONN. CONNECTOR PL'S AND SCREWS REF. 2/S701 MID-HEIGHT OF CONN. 2" 2" D d1 WHEN d1 > D/2 PROVIDE (X) SDCFXXXXXX REINF. SCREWS EACH SIDE OF CONNECTION
