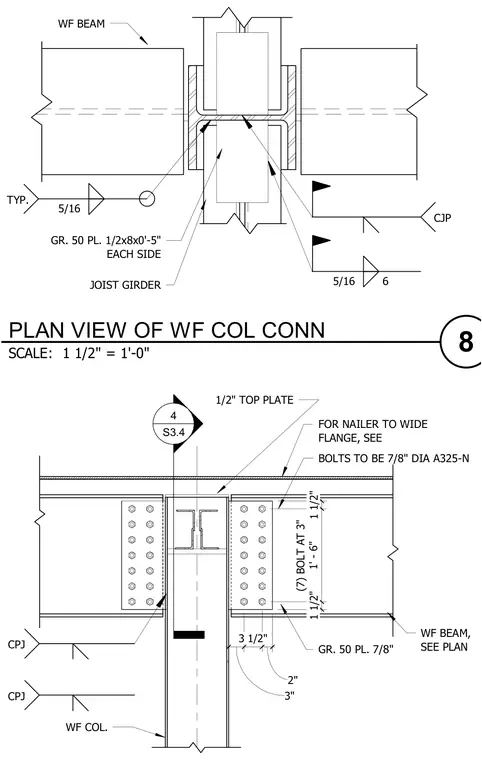

A drag beam connection at a wide flange column is presented in both plan and elevation views. The wide flange beam connects to the wide flange column using Grade 50 plates measuring one-half inch by eight inches by zero feet five inches on each side, secured with seven seven-eighths inch diameter A325-N bolts spaced at three inches over a one foot six inch span. Additional connections utilize complete joint penetration welds and five-sixteenths inch fillet welds. A half-inch top plate ties the assembly together at the column flange. Wood nailers attach to the wide flange beam as specified in the structural plans.
WF BEAM, SEE PLAN FOR NAILER TO WIDE FLANGE, SEE GR. 50 PL. 7/8" 1/2" TOP PLATE WF COL. 1 1/2" (7) BOLT AT 3" 1' - 6" 1 1/2" CPJ 3" 3 1/2" 2" BOLTS TO BE 7/8" DIA A325-N 4 S3.4 CPJ CJP 5/16 6 GR. 50 PL. 1/2x8x0'-5" EACH SIDE WF BEAM JOIST GIRDER TYP. 5/16 SCALE: 1 1/2" = 1'-0" 8 PLAN VIEW OF WF COL CONN
