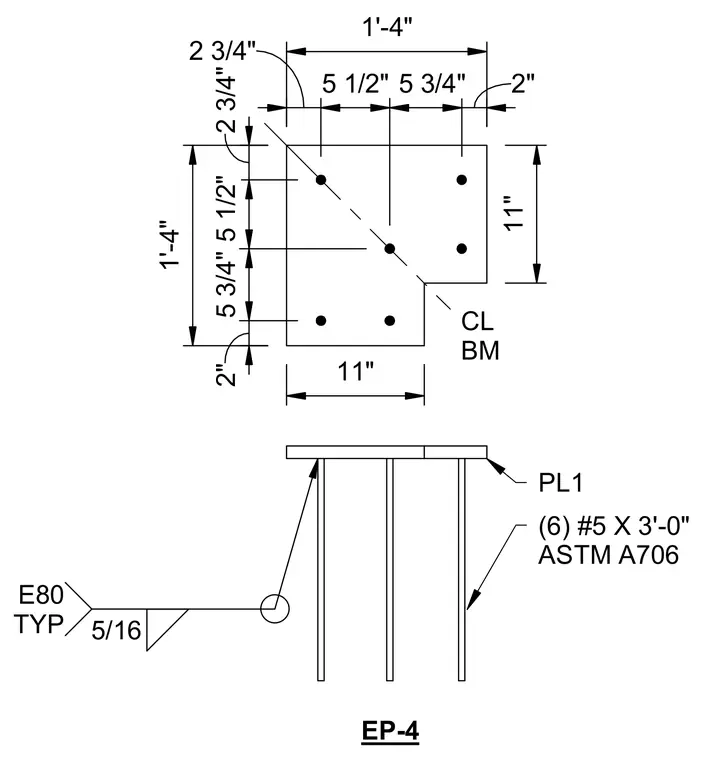

An embedded bearing plate assembly consists of a steel plate designated as PL1 anchored by six number five reinforcing bars measuring 3 feet 0 inches in length conforming to ASTM A706 specifications. The reinforcing bars are welded to the plate using typical 5/16 inch fillet welds with E80 electrode classification. The layout provides dimensional spacing with overall plate dimensions of 1 foot 4 inches by 1 foot 4 inches and specific edge and interior clearances.
1'-4" 2 3/4" 5 1/2" 5 3/4" 2" 1'-4" 2" 5 3/4" 5 1/2" 2 3/4" CL BM EP-4 (6) #5 X 3'-0" ASTM A706 11" 11" PL1 5/16 E80 TYP
