A hollow structural section column of size 4x4x1/4 is anchored to a reinforced concrete footing using a 10x10x3/4 inch base plate and four 3/4-inch diameter anchor bolts. The base plate rests on a 1 1/2-inch layer of non-shrink grout. The lower portion of the steel column is encased in concrete. A 1/4-inch continuous sheet of flexible foam isolation joint filler tops off the slab edge and is sealed at the top, with Ceramar or Deck-O-Foam specified as acceptable products. The square concrete footing measures 3 feet by 3 feet by 12 inches deep and is reinforced with three number 4 bars each way with 3-inch typical clear cover. Subgrade preparation is per the geotechnical report, and the adjacent slab thickness is sized per the foundation plan.

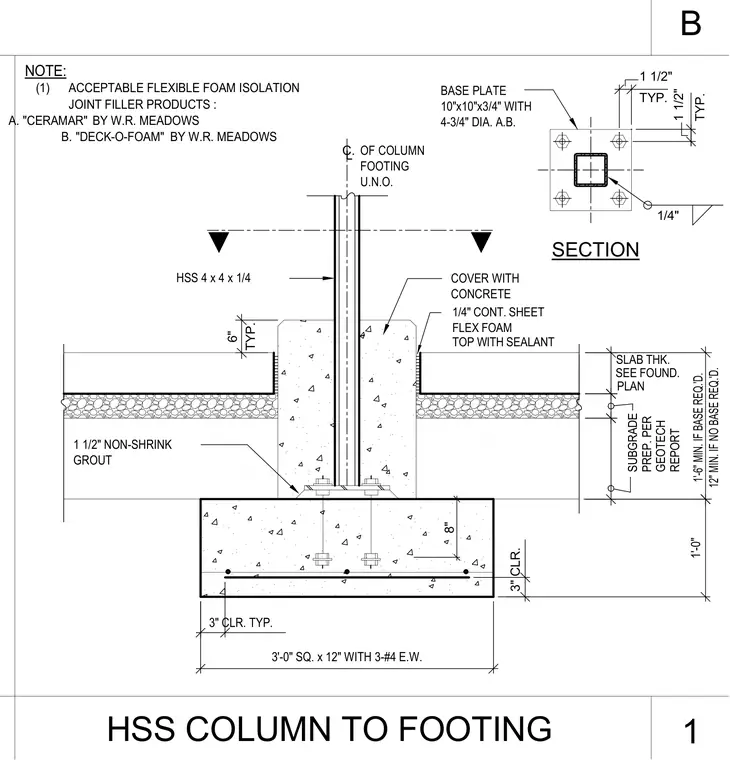

HSS COLUMN TO FOOTING B 1 SECTION NOTE: (1) ACCEPTABLE FLEXIBLE FOAM ISOLATION JOINT FILLER PRODUCTS : A. "CERAMAR" BY W.R. MEADOWS B. "DECK-O-FOAM" BY W.R. MEADOWS U.N.O. 1'-6" MIN. IF BASE REQ.'D. 12" MIN. IF NO BASE REQ.'D. 1'-0" GROUT 3'-0" SQ. x 12" WITH 3-#4 E.W. 3" CLR. TYP. 3" CLR. 1 1/2" NON-SHRINK HSS 4 x 4 x 1/4 COVER WITH CONCRETE 1/4" 4-3/4" DIA. A.B. 10"x10"x3/4" WITH BASE PLATE FOOTING OF COLUMN L C. TYP. 1 1/2" TYP. 1 1/2" 6" TYP. 8" 1/4" CONT. SHEET FLEX FOAM TOP WITH SEALANT SLAB THK. SEE FOUND. PLAN SUBGRADE PREP. PER GEOTECH REPORT
