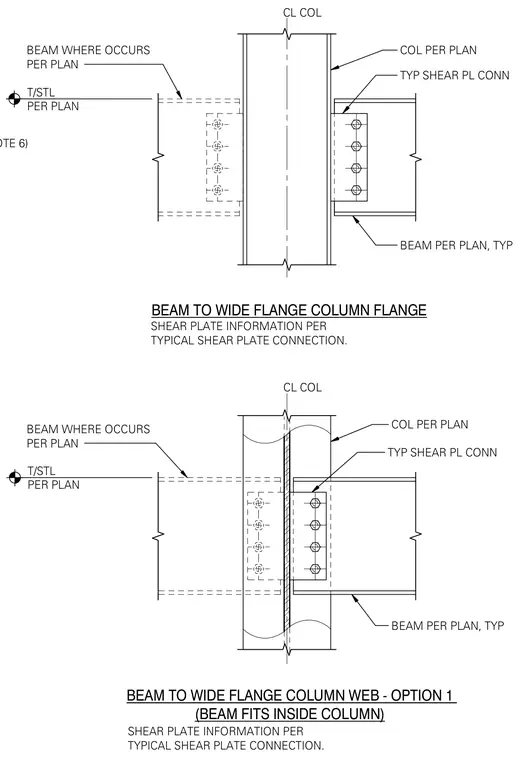

A wide flange structural steel beam connects to a wide flange steel column using a typical shear plate welded to the column and bolted to the beam web. The top detail shows the beam framing to the column flange, while the bottom detail shows Option 1 with the beam framing to the column web where the beam fits inside the column flanges. Field welds secure the shear plate to the column per structural plans, and high-strength bolts secure the beam web to the shear plate. Top of steel elevations and beam sizes are sized per plan.
COL PER PLAN TYP SHEAR PL CONN BEAM PER PLAN, TYP BEAM TO WIDE FLANGE COLUMN FLANGE SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. CL COL COL PER PLAN TYP SHEAR PL CONN BEAM PER PLAN, TYP CL COL BEAM TO WIDE FLANGE COLUMN WEB - OPTION 1 (BEAM FITS INSIDE COLUMN) SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. BEAM WHERE OCCURS PER PLAN BEAM WHERE OCCURS PER PLAN FIELD WELDS (NOTE 6) T/STL PER PLAN T/STL PER PLAN 0 $ - - =1 i i— M|g>- 0 0 <*> 0 <■ 0 <*> 0 h<®>- I _ I ___ =1 <V if $ =1 X i-@- i t L<®>- 0 0 <> •> 0 0 h<£7>- =1 K
