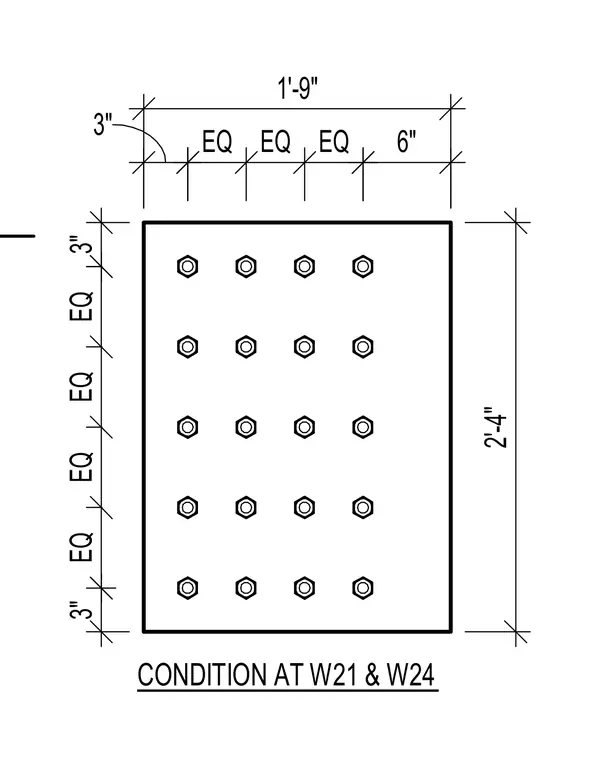

A structural steel connection condition at wide flange beams W21 and W24 features a bolted plate measuring one foot nine inches by two feet four inches. Fasteners are arranged in a multi-row layout with symmetrical spacing along the edges. Edge distances measure three inches with intermediate equal spaces across the assembly.
