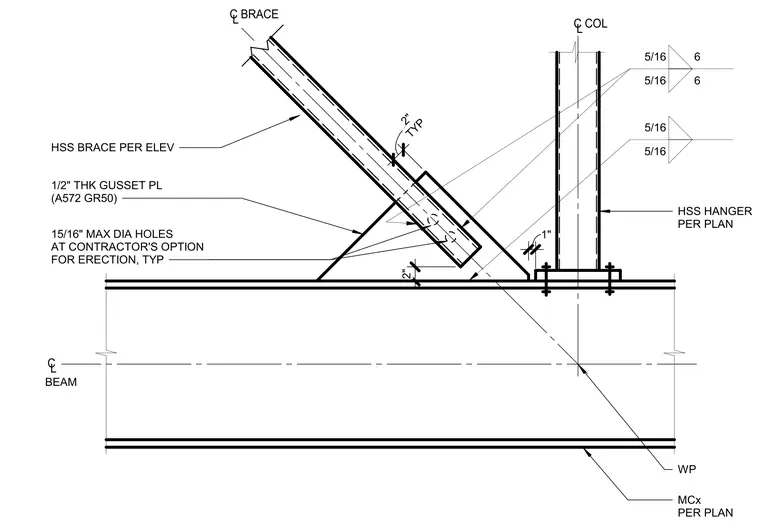

An HSS brace frames into a one-half-inch-thick ASTM A572 Grade 50 gusset plate welded to an MCx beam and an HSS hanger column. The connection includes fifteen-sixteenths-inch maximum diameter holes provided at the contractor's option for erection typically, spaced with two-inch clearances. Five-sixteenths-inch fillet welds secure the gusset plate and framing members with designated weld spacings. A work point is established at the intersection of the brace and beam centerlines.
5/16 6 5/16 6 5/16 5/16 C BRACE L C L BEAM MCx PER PLAN WP HSS HANGER PER PLAN 1/2" THK GUSSET PL (A572 GR50) HSS BRACE PER ELEV 15/16" MAX DIA HOLES AT CONTRACTOR'S OPTION FOR ERECTION, TYP C COL L 1" 2" TYP 2"
